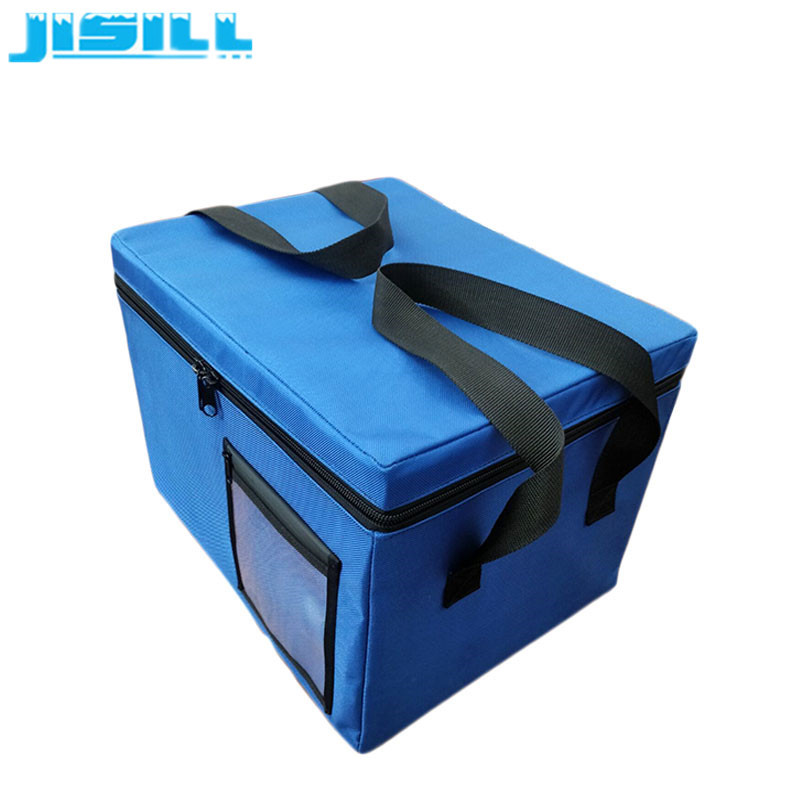

Large Capacity Medication Travel Cooler Pack With Vacuum Insulated Panel

Negotiation
MOQ
Negotiation
Price
Large Capacity Medication Travel Cooler Pack With Vacuum Insulated Panel
Features Gallery Product Description Request A Quote
Features
Specifications
Type: 700 Oxford Fabric Insulated Coolest Cool Ice Box For Medical Vaccine Transport
Outer Size: 38.2*38.2*38.2cm
Capacity: 27L
Used For: For Cans, Food, Medicine, Vaccine
Accessories:: Gel Packs
Feature:: Recyclable
Outer Material: 600D Oxford Cloth
Inner Material: VIPs + PU
Internal Size: 30*30*30cm
High Light:

medicine ice box

,

medicine cooler box

,

Vacuum Insulated Panel Cooler Pack

Basic Infomation
Place of Origin: China
Brand Name: JISI
Certification: sgs
Model Number: BWX - 27L
Payment & Shipping Terms
Packaging Details: Carton packing
Delivery Time: 15 work days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 100 per day
Product Description

Keep 72 hours 2-8 degrees vaccine cool box with vacuum insulated panel



Product Description


This is a 27 L cooler box, outer material is PE plastic, and internal material is vacuum insulation panel box, The combination of them can keep your contents cold for 90 h.VIPs provide energy efficiency and space benefits for home appliances, temperature-controlled packaging, refrigerated transportation systems and any other applications that require low energy loss from heat transfer.



More details;

Item Dimension(cm) Capacity Material Cold source (ice brick)
JS-008 The external size: 38.2*38.2*38.2cm The internal size: 30*30*30cm 27L

Outer:Plastic; Inside:Vacuum Insulation Panel;

The core material:glass fiber

rigid ice pack
TECHNICAL INFORMATION;
Vacuum insulation panel cooler box offers a solution to the problem of maintaining critical protection
and thermal stability over long distances for transporting vaccines, medication and food contents. It can be held at between +2ºC and +8ºC for more than 72 hours in an ambient temperature of 35ºC, and for in excess of 50 hours in an ambient temperature of - 25ºC.


We have PCM (Phase Change Material) ice pack designed for our cooler box that will satisfy many different ambienttemperature requests, Required Temperature Range and holding times from the user.

There are many different configurations for the use of this super box - please send in your enquiry stating required internal temperature range, minimum holding time and contents and we will be happy to suggest the correct box and phase change product to give you what you require.

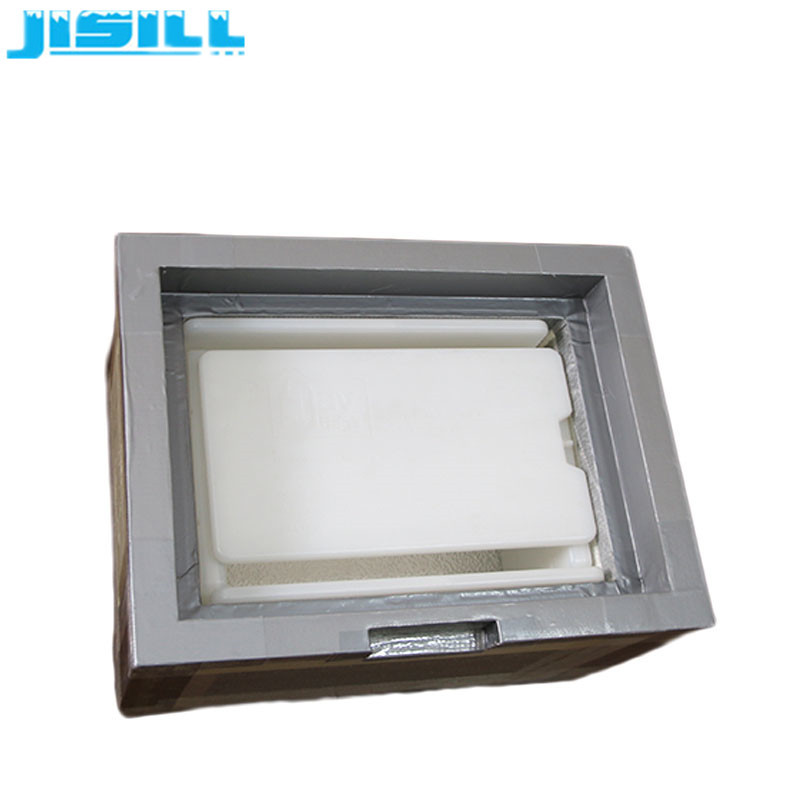

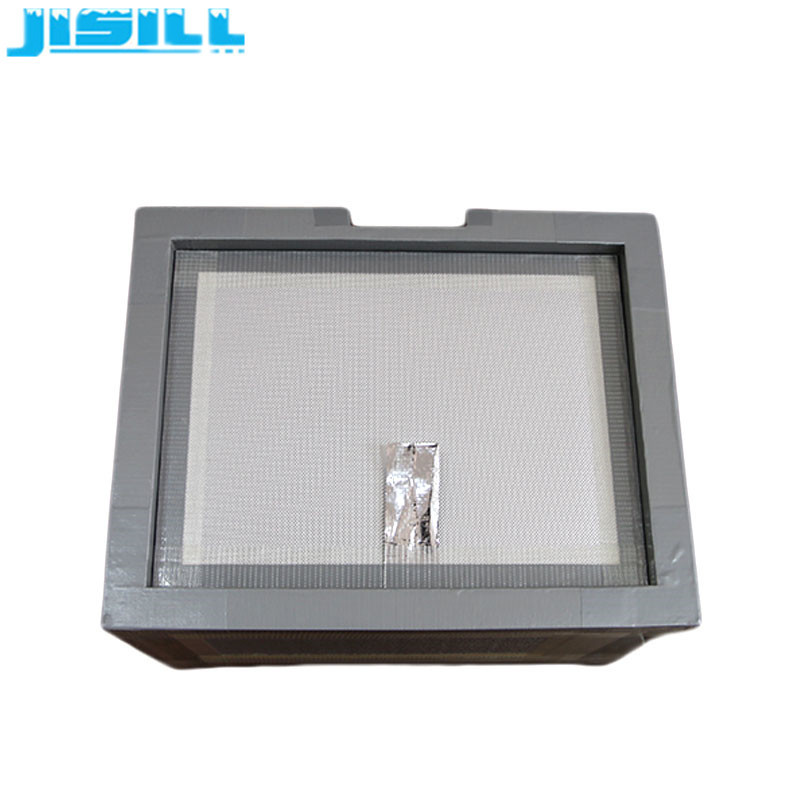

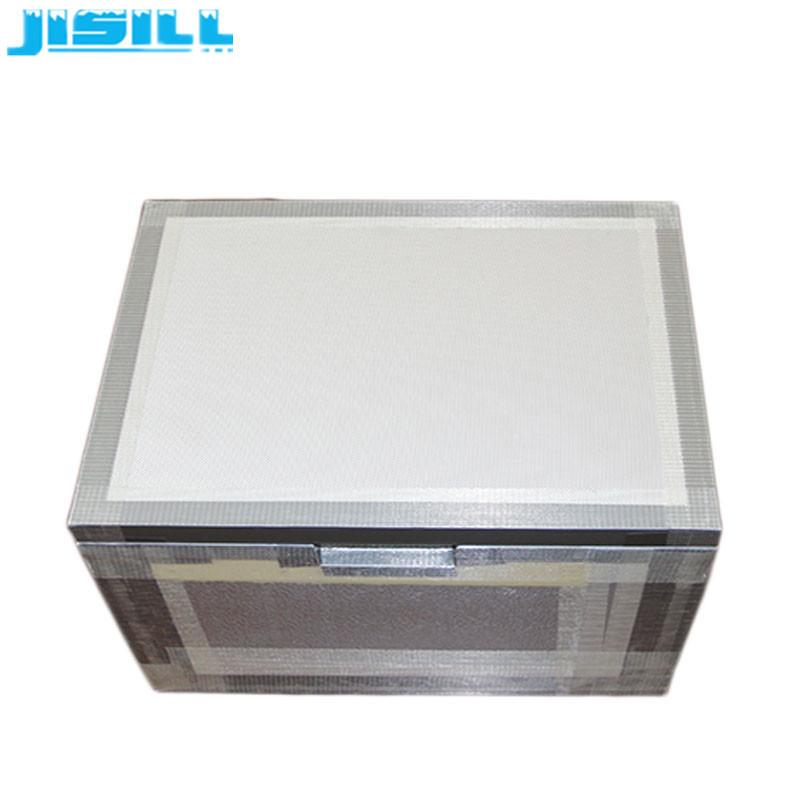

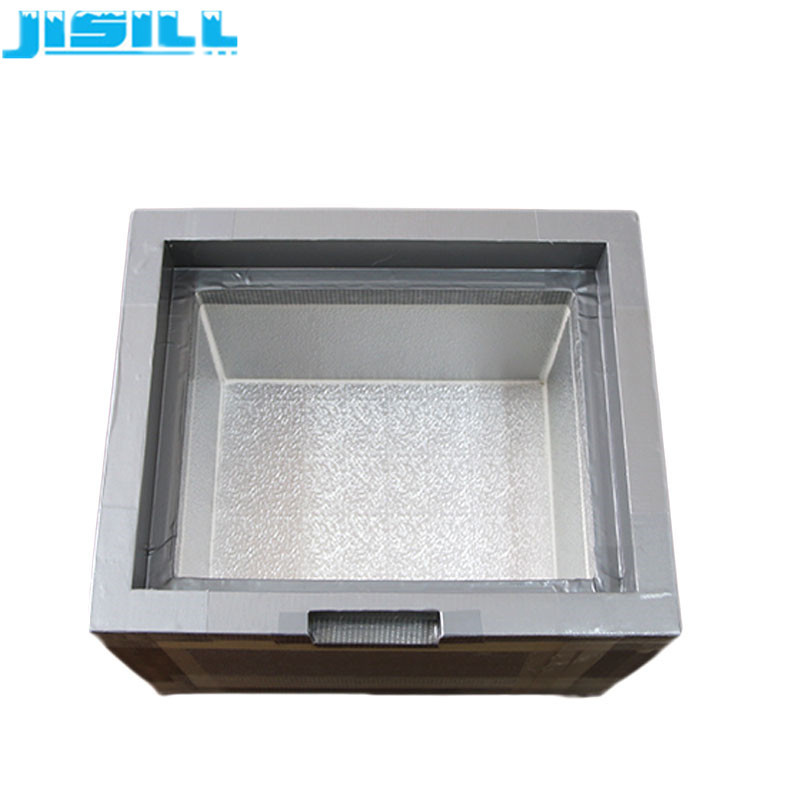

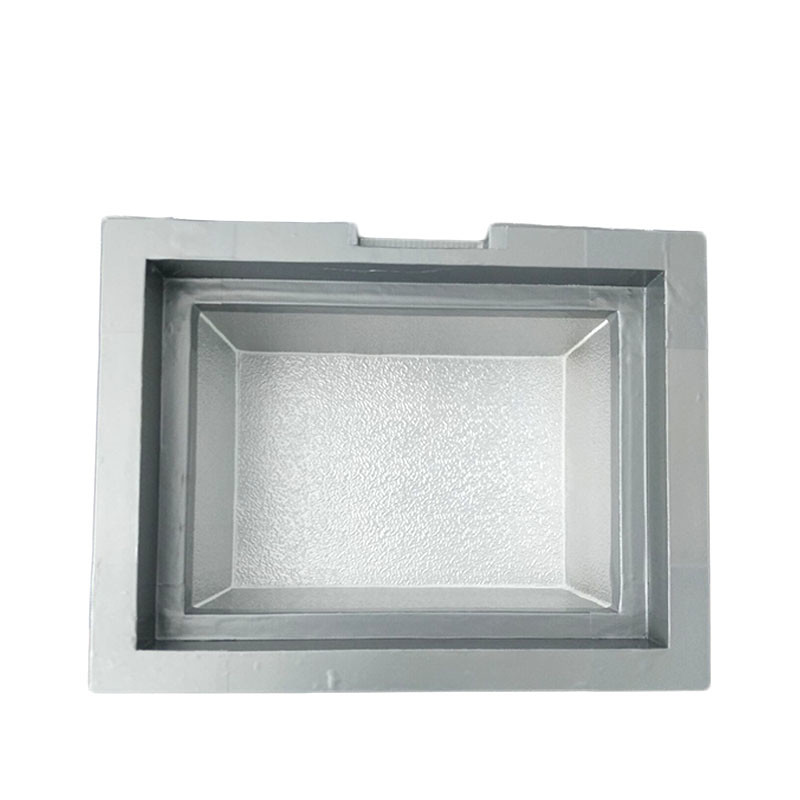

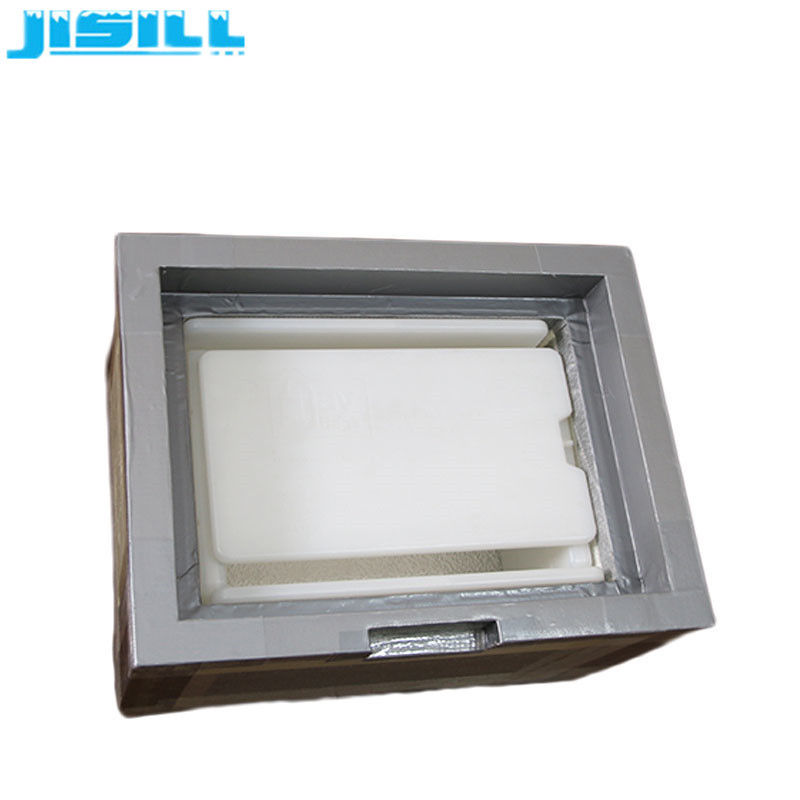

Product structure;
  • PE Plastic material,
  • The cover is ladder shape, sealing design.
  • Inside is PU + VIP panels

The insulation layer is composed of VIP+PU, and the insulation effect of the three-layer insulation layer is better than that of the second layer.



QQ20171211132945



Picture show;12375





Company Information

Large Capacity Medication Travel Cooler Pack With Vacuum Insulated Panel 6

Certifications

All goods are passed FDA MSDS CPSIA and CE approved!Large Capacity Medication Travel Cooler Pack With Vacuum Insulated Panel 7

FAQ

Cooler packs;



  • What is ice box/ice pack ?
    Ice box is equivalent to the average freezer or refrigerator freezer, is the ideal cooling agent.
  • How do I store ice box /ice pack ?
    As long as frozen a night in the household refrigerator , make ice pack contents into a solid
    Body, and then use or preserved in the frozen indoors, can take out to use at any time.
  • Is ice box /ice pack safe?
    Safe,food grade HDPE material ,BPA free .



Vacuum insulation panels;

  • What is VIP panel?

It is high performance microporous insulation panels covered in an impermeable polymer outer envelope which is heat sealed under vacuum to optimise the thermal performance.

  • What is the core material?

The core of the panel insulation is Superfine glass fiber, it is a blend of filament reinforced silica and an opacifier. The outer envelope is an ultra-low permeation barrier film that comprises multiple metalised polymer layers. Exact barrier film specification may vary according to the application.

  • Is it safe when i use with my food or others?

Core material is non-combustible and complies to the requirements of DIN4102. It is environmentally safe and completely recyclable.

  • What is the thicknees of this panel?

We have exsiting 1cm,1.5cm and 2cm thickness.

  • Can we customize VIP panel shape?

Yes, we can do your any shape and size. Welcomed!



Our cooler box consists of a vacuum insulation board and ice packs, and an Oxford cloth bag on the outside.Large Capacity Medication Travel Cooler Pack With Vacuum Insulated Panel 8



Advantages;

  • we are a professional factory, manufacturers.
  • we have the blow molding machine, injection molding machine and ultrasound machine.
  • we can customize your products.
  • we have many kinds of temperature formula, for example, 2-8 degrees, 4 to 5 degrees, 10 degrees below zero, 15 degrees below zero, 25 degrees below zero, etc.
  • high productivity and fast delivery.
