48 Hours 4L Vaccine Carrie Vacuum Insulated Cooler Box With Strap
Negotiation
MOQ
Negotiation
Price
48 Hours 4L Vaccine Carrie Vacuum Insulated Cooler Box With Strap
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: JISI
Model Number: BWX005
High Light:

foam insulation board

,

insulation foam board

Payment & Shipping Terms
Packaging Details: Carton packing
Delivery Time: 7-10 work days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 100 per day
Specifications
Type: Vacuum Cooler Box
Outer Size For EPP Box: 23*17*17cm
Inter Size For EPP Box: 21*14*14cm
Capacity For EPP Box: 4 L
Outer Material: Oxford Fabric
Inner Material: Vacuum Insulation Panel + PU Foaming
Used For: Medical Blood Vaccine And Food
Inner Temperature: 2-8 Degrees
Cold Time: 48 Hours
Item: 48 Hours 4L Vaccine Carrie Vacuum Insulated Cooler Box With Strap
Product Description

48 Hours 4L Vaccine Carrie Vacuum Insulated Cooler Box With Strap





Product Details:

Vacuum Insulated Material Portable Medical Vaccine Travel Cooler Box

Product Descroption

Item 48 Hours 4L Vaccine Carrie Vacuum Insulated Cooler Box With Strap
Application Long time Medical, vaccine, blood storage and ice cream, food transport
Main Material Vaccum insulation panel and PU foam
Cold source Cold source:PCM ice bricks
Cold life Ambient temperature: not above 30 deg.C,Hold articles inside at 2 deg.C to 8 deg.C about 90 hours
Dimension



  • Outernal size: 23*17*17cm
  • Internal size: 21*14*14cm



Capacity 4 L
Description
  • Cold Chain Boxes, specially designed to hold temperatures within essential safe temperature limits without electricity during transport or use for:
  • Vaccines, blood, veterinary , laboratory, Biopharmaceutical, Life Science and other Medical Products
  • IVD products and biological specimens
  • National Health Service,WHO,UNICEF, Blood & Tissue Transplant Agencies
  • Selected fresh food, drink and dairy products




Medical cooler Box application:

Medical cooler Boxes, are used to transport blood products, organs and pharmaceuticals that require stable temperatures to maintain their life saving and life giving properties.

Ideal For Transporting Medicines such as :
--Vaccines
--Insulin
--Breeding Programs
--Biopharmaceutical, Life Science and other Medical Products
--IVD products and biological specimens
--Selected fresh food, drink and dairy products

Vacuum Insulation Panel And PU Foam Features:

PU-VIP material is packaged in a vacuum state as a inner material with a very strong heat insulating property. PU foam moulding, have super thermal insulation, the thermal conducitivity is lower than 0.0025w/m.k., match PCM phase change material can control the temperature precisely for 120H without power supply, enterprises can flexibly choose and reasonable collocation shceme, this can greatly simplify operating, reduce lobor costs. For pharmaceutical logistics enterprises to solve transport problems.

Vaccine Cold Storage Box with Glass fiber - VIP can keep box temperature 2C-8C for 72 to 90 hours,even for a longer time.



Product Pictures;

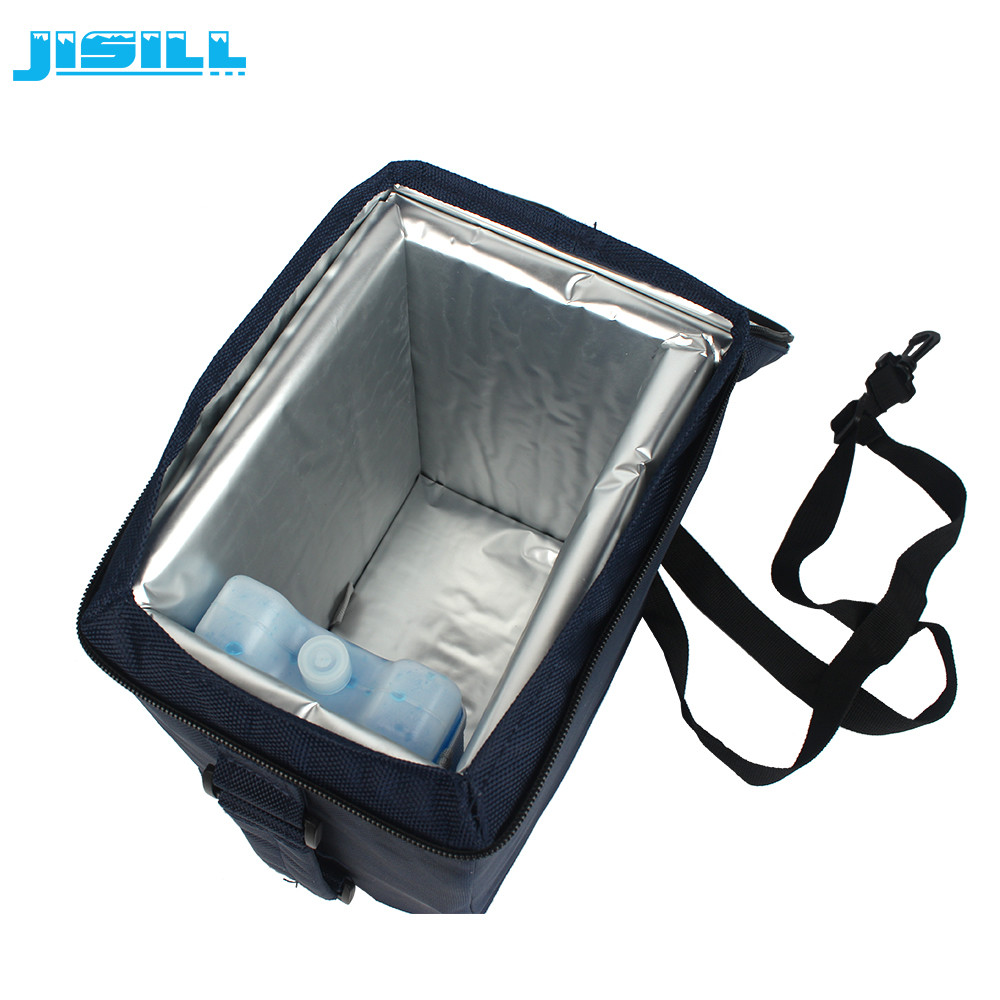

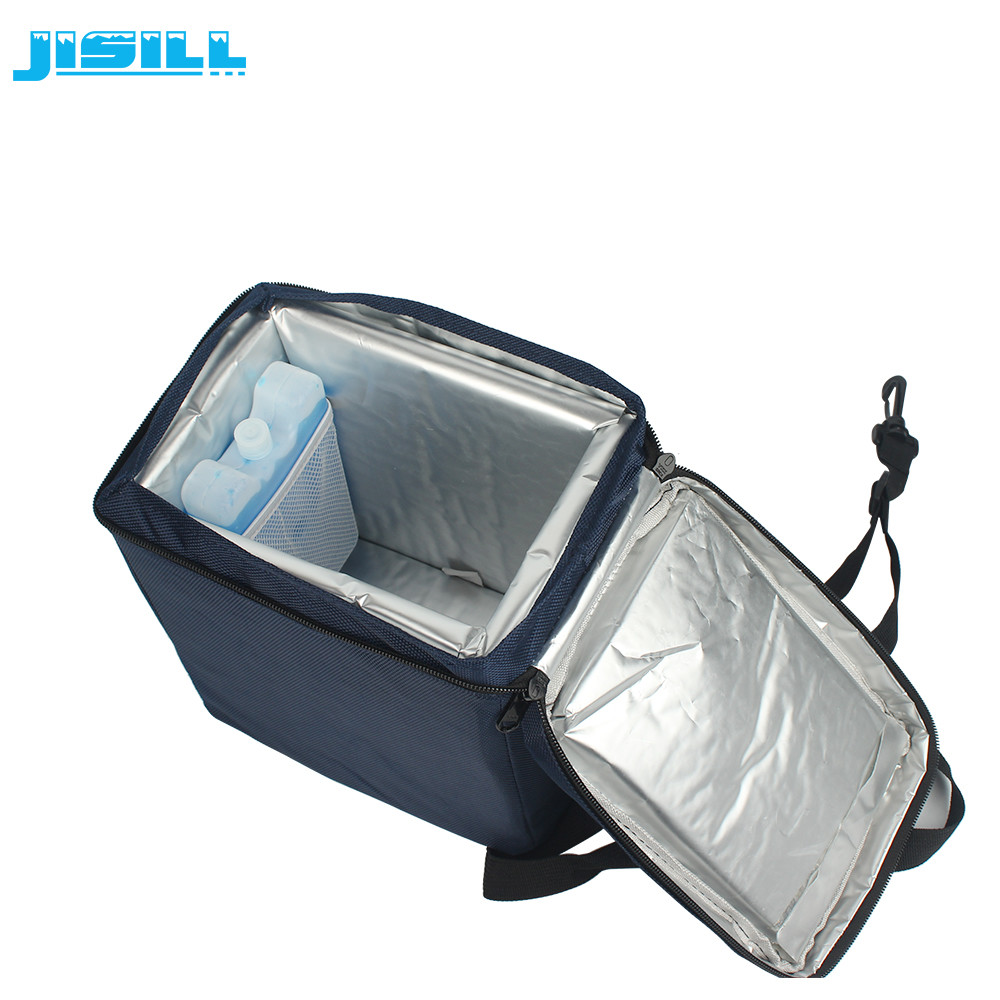

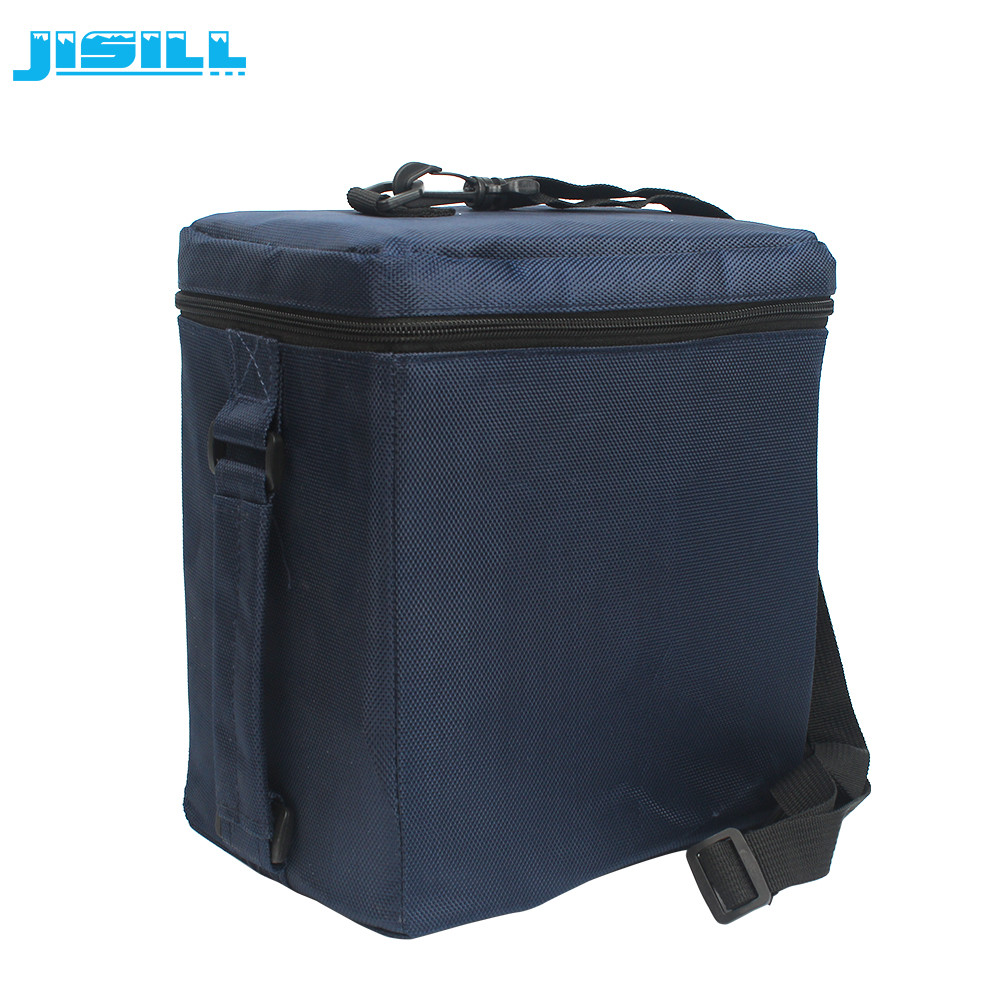

48 Hours 4L Vaccine Carrie Vacuum Insulated Cooler Box With Strap 148 Hours 4L Vaccine Carrie Vacuum Insulated Cooler Box With Strap 248 Hours 4L Vaccine Carrie Vacuum Insulated Cooler Box With Strap 3


Material detalis;



Internal material is vacuum insulation panel and PU foam, Specially designed to hold temperatures within essential safe temperature limits without electricity during transport or used for home appliances, temperature-controlled packaging, refrigerated transportation systems and any other applications that require low energy loss from heat transfer.Vacuum Insulated Material Portable Medical Vaccine Travel Cooler Box

We have PCM (Phase Change Material) ice pack designed for our cooler box that will satisfy many different ambienttemperature requests, Required Temperature Range and holding times from the user.

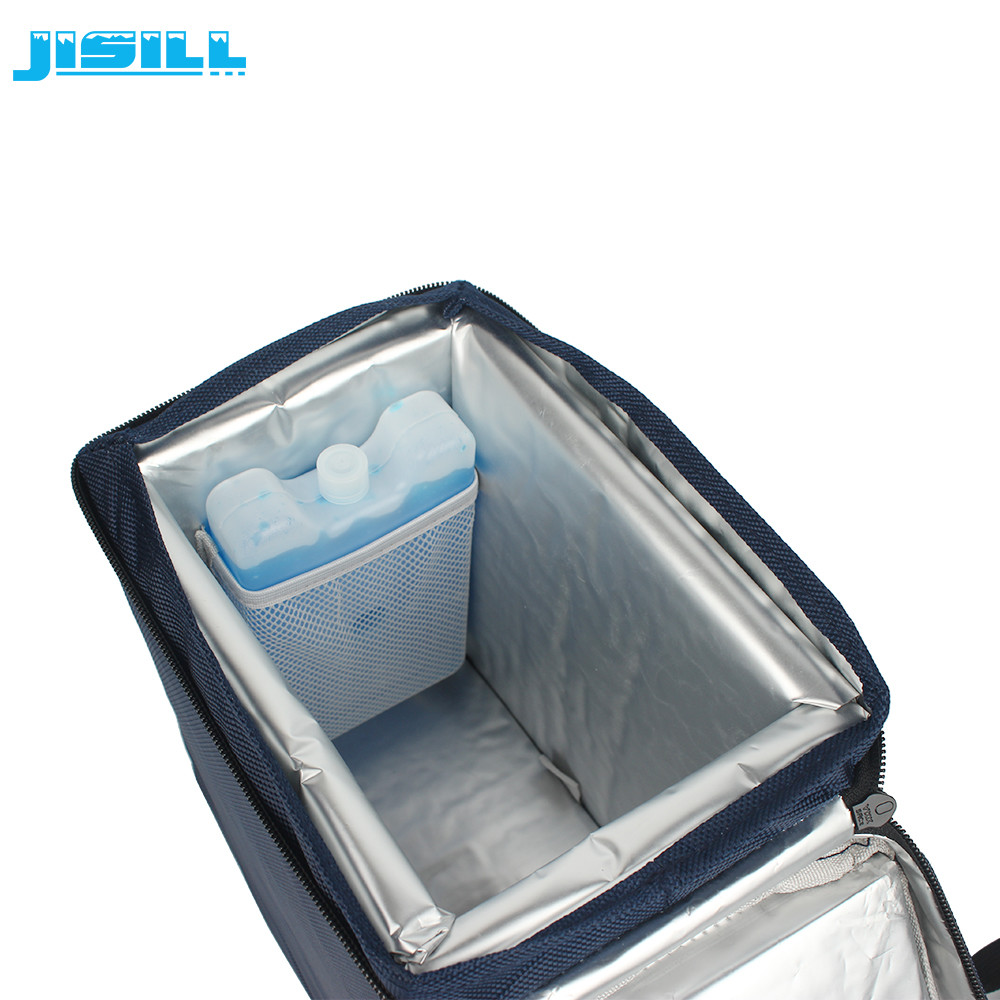

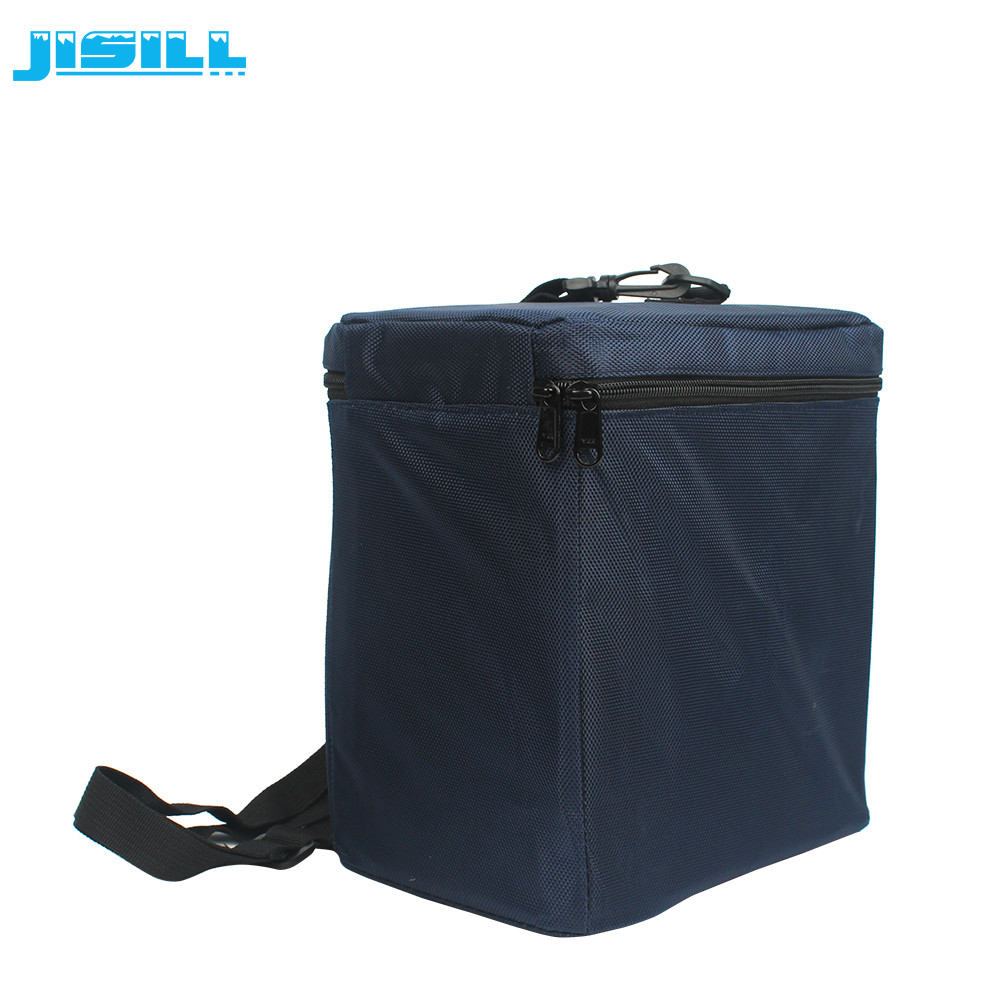

48 Hours 4L Vaccine Carrie Vacuum Insulated Cooler Box With Strap 5 48 Hours 4L Vaccine Carrie Vacuum Insulated Cooler Box With Strap 6 48 Hours 4L Vaccine Carrie Vacuum Insulated Cooler Box With Strap 7





Test curve chart for two types box:

97L common type:
Vacuum Insulated Material Portable Medical Vaccine Travel Cooler Box

75L Thickening pattern:
Vacuum Insulated Material Portable Medical Vaccine Travel Cooler Box




There are many different configurations for the use of this super box - please send in your enquiry stating required internal temperature range, minimum holding time and contents and we will be happy to suggest the correct box and phase change product to give you what you require.
