Premium Insulated Bio Medical Cool Box Blood Transportation Bag Longlife

50 pieces
MOQ
56.5
Price
Premium Insulated Bio Medical Cool Box Blood Transportation Bag Longlife
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Premium Insulated Bio Medical Blood Transportation Bag Cooler
External Dimension: 46x46x46cm
Internal Dimension: 35x35x35cm
Capacity: 42L
Weight: 3kg
Outer Material: Carton, Oxford Fabric Bag, PE Plastic Box Or Custom
Inside Materia: PU+Vacuum Insulation Panel
The Thermal Conductivity: <0.0025w/m.k
High Light:

medicine ice box

,

medicine cooler box

,

Medical Cool Box Bio

Basic Infomation
Place of Origin: China
Brand Name: JISILL
Certification: FDA,MSDS,CPSIA
Model Number: JS-019
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Sample: within 5 days, bulk order:10-15 days, according to the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability: 100 pieces/week
Product Description

Premium Insulated Bio Medical Cool Box Blood Transportation Bag Longlife

This is a Bio Medical Blood Transportation cooler bag, outer material is PE plastic or Oxford bag, and internal material is PU or VPU Splicing box, The combination of them can keep your contents cold for more than 72 h.PU or VPU provide energy efficiency and space benefits for home appliances, temperature-controlled packaging, refrigerated transportation systems and any other applications that require low energy loss from heat transfer.







Specification List
Item Specification With PCM Material
BWX-8L
External size: 380x380x380mm
Internal size: 260x260x260mm
Capacity :17L

PCM : 24.6X24.6X2.5cm - 6pcs

Inside size : 200x200x200mm

Avaliable Capacity :8L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-27L
External size: 460x460x480mm
Internal size: 350x350x350mm
Capacity :42L
PCM : 33.7x 33.7x2.5cm - 6pcs
Inside size : 300x300x300mm
Avaliable Capacity :27L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-50L
External size: 545x545x545mm
Internal size: 435x435x435mm
Capacity :82L
PCM:42x42x3cm - 6 pcs
Inside size : 380x380x3500mm
Avaliable Capacity :50L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-85L
External size: 610x610x620mm
Internal size: 500x500x500mm
Capacity :125L

PCM :47.7x24x2.5cm - 12 pcs

Inside size : 440x440x440mm

Avaliable Capacity :85L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-90L
External size: 760x540x600mm
Internal size: 630x415x475mm
Capacity :124L
PCM :
46.5x31.7x2.5cm - 4pcs
46x41.2x2.5cm - 2pcs
41.2x31.4x2.5cm - 4pcs
Inside size : 580x365x425mm
Avaliable Capacity :90L
Outside : Oxford bag or PE box
Inside : PU or VPU
PU insulation material for 72 hours transport

PU +vip insulation material can hold 96 hours,even 120 hours

The following is the recommended solution according to the requirements







PU-VIP material is packaged in a vacuum state as a inner material with a very strong heat insulating property. PU foam moulding, have super thermal insulation, the thermal conducitivity is lower than 0.0025w/m.k., match PCM phase change material can control the temperature precisely for 120H without power supply, enterprises can flexibly choose and reasonable collocation shceme, this can greatly simplify operating, reduce lobor costs. For pharmaceutical logistics enterprises to solve transport problems.
Ice Cooler Box with PU+Vacuum insulation panel - can keep box temperature 2C-8C for 72 hours,even for a longer time.


Premium Insulated Bio Medical Cool Box Blood Transportation Bag Longlife 0



-Precise design allows for seamless self-assembly
-Save transportation costs



Product show

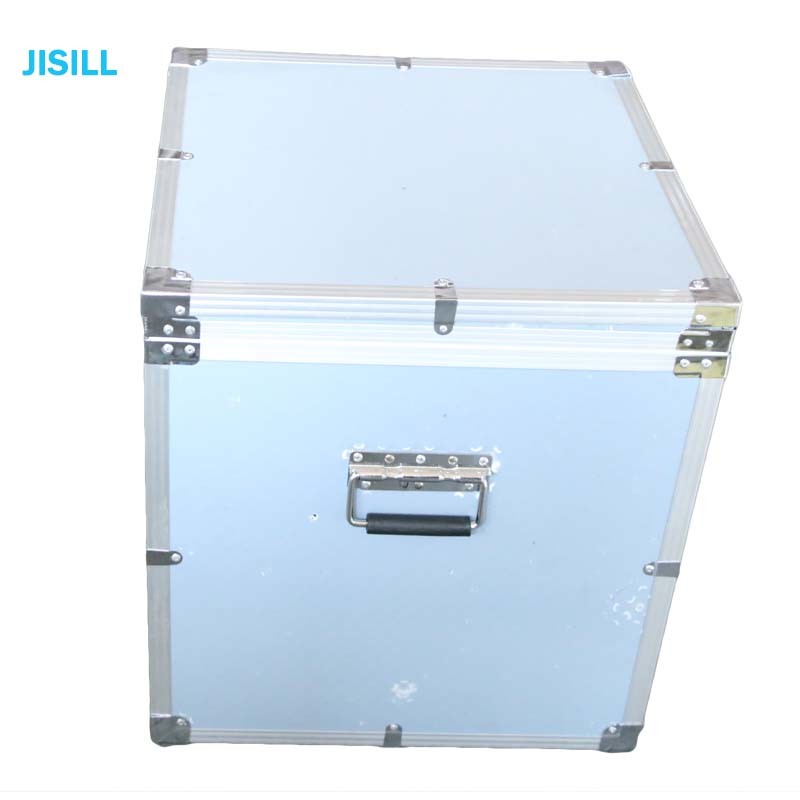

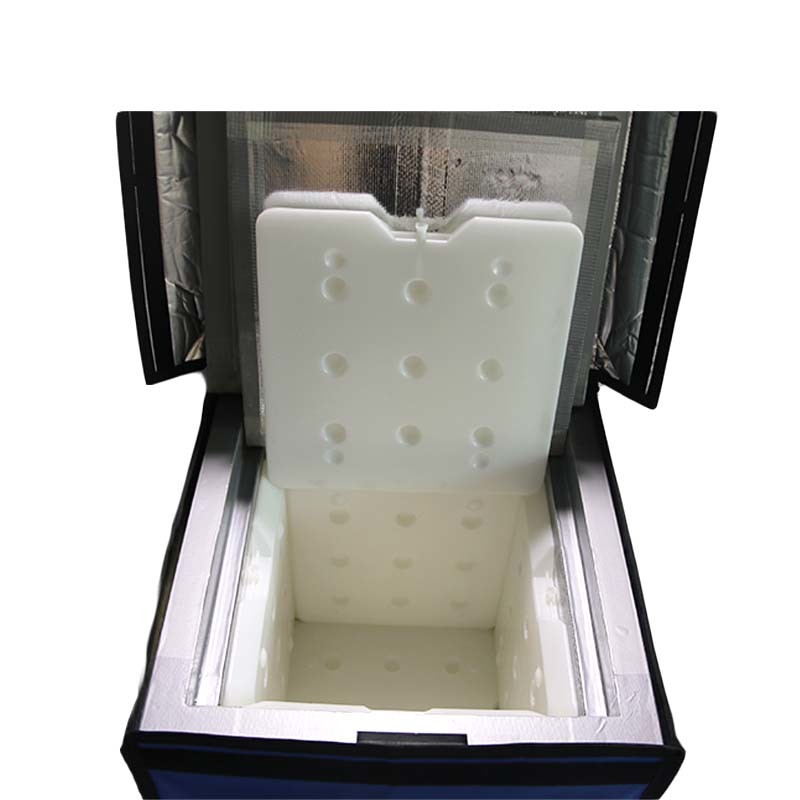

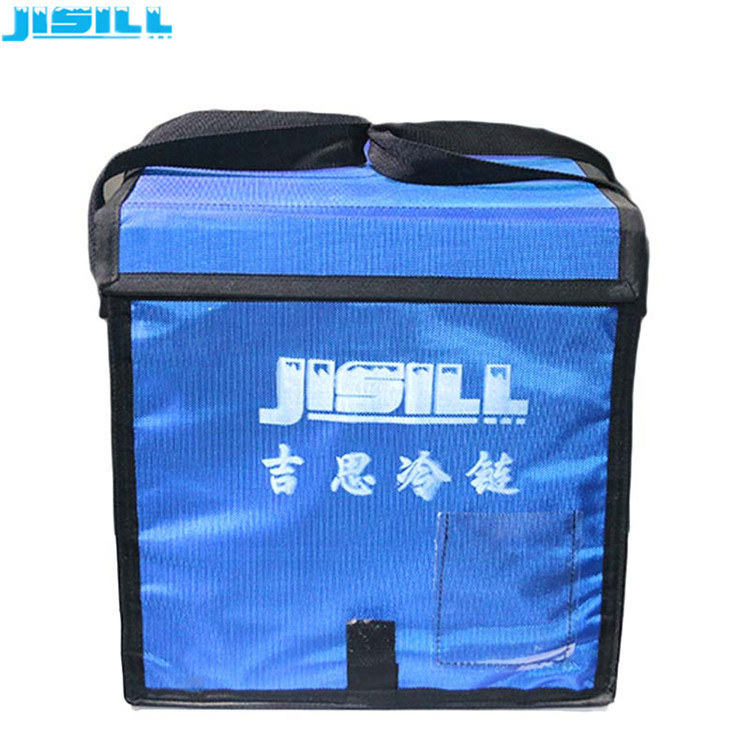

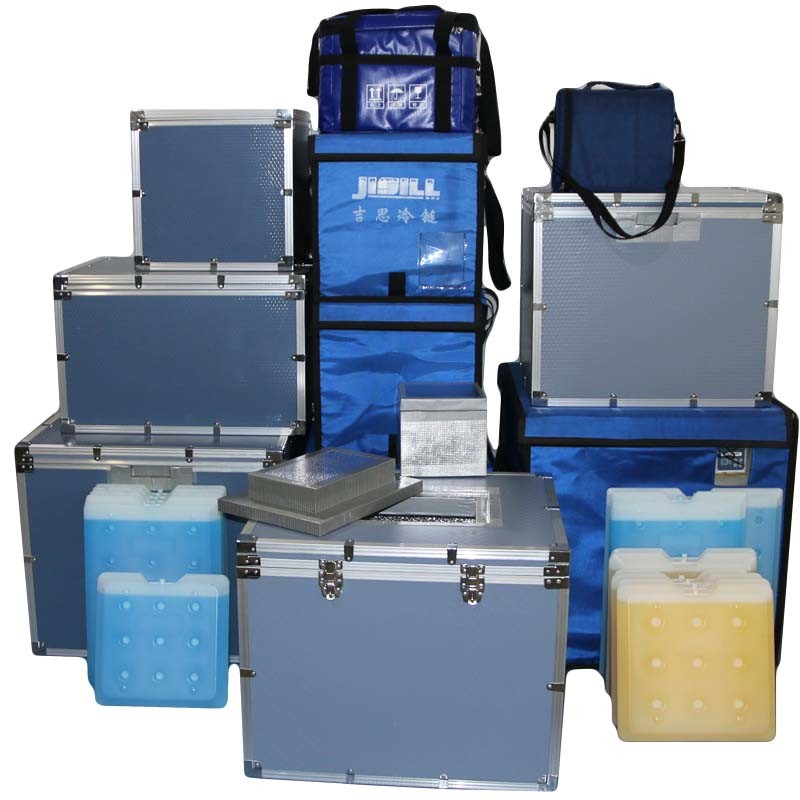

 Premium Insulated Bio Medical Cool Box Blood Transportation Bag Longlife 1Premium Insulated Bio Medical Cool Box Blood Transportation Bag Longlife 2Premium Insulated Bio Medical Cool Box Blood Transportation Bag Longlife 3
Premium Insulated Bio Medical Cool Box Blood Transportation Bag Longlife 4


PU-VIP Insulation Cooler Box application:

Medical  cooler Boxes, are used to transport blood products, organs and pharmaceuticals that require stable temperatures to maintain their life saving and life giving properties.

Ideal For Transporting Medicines such as :
-- Selected fresh food, drink and dairy products
-- Vaccines
-- Insulin
-- Breeding Programs
-- Biopharmaceutical, Life Science and other Medical Products
-- IVD products and biological specimens





External combination type

1. PE plastic box - can be use for ice cream transport


2. Oxford fabric bag -can be use for medical cold storage



3, Carton packing - can be use for food fresh storage transport




Inner cold sourse



Inner cold sourse - pcm phase change material ice brick:


PCM phase change material refers to the material whose state will vary with temperature and provide latent heat and the process of physical properties conversion is called phase change, when the amterial will absorb or release a large amount of latent heat. Our phase change materials temperature can be -40 ~ 100 centi degree, can according to customer request offer design and development. All products using food grade plastic packaging, nont-toxic, safe and environment, meet the requirements of mediccal and food safety.

The temperature range can be 55 degree C,15 degree C,2-8degree C, -10degree C, -15degree C, -18degree C,-20degree C,-25degree C and others, match differenet phase change ice box can keep 48H,72H,96H and others.

 Premium Insulated Bio Medical Cool Box Blood Transportation Bag Longlife 5
