6CM 32L PU Insulation Medical Cooler Box Reagent Storage Container
1 pieces
MOQ
33
Price
6CM 32L PU Insulation Medical Cooler Box Reagent Storage Container
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: JISILL
Certification: FDA,MSDS,CPSIA
Model Number: BWX-32L
High Light:

PU Insulation Medical Cooler Box

,

Medical Cooler Box 32L

,

6cm medical cooler box

Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Sample: within 5 days, bulk order:10-15 days, according to the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability: 100 pieces/week
Specifications
Product Name: 32L PU Insulation Medical Cooler Box Reagent Storage Container
External Dimension: 44x44x45cm
Internal Dimension: 32x32x32cm
Capacity: 32L
THICKNESS: 6CM
Outer Material: Carton, Oxford Fabric Bag, PE Plastic Box Or Custom
Inside Materia: PU
The Thermal Conductivity: <0.0025w/m.k
Product Description



32L PU Insulation Medical Cooler Box Reagent Storage Container









- WE ARE DIFFERENT !

After several times of research and testing, Self-assembling insulation box have applied for our company's Patent. Without affecting the effect of use, this design increases the flexibility of use and greatly reduced the transportation cost !

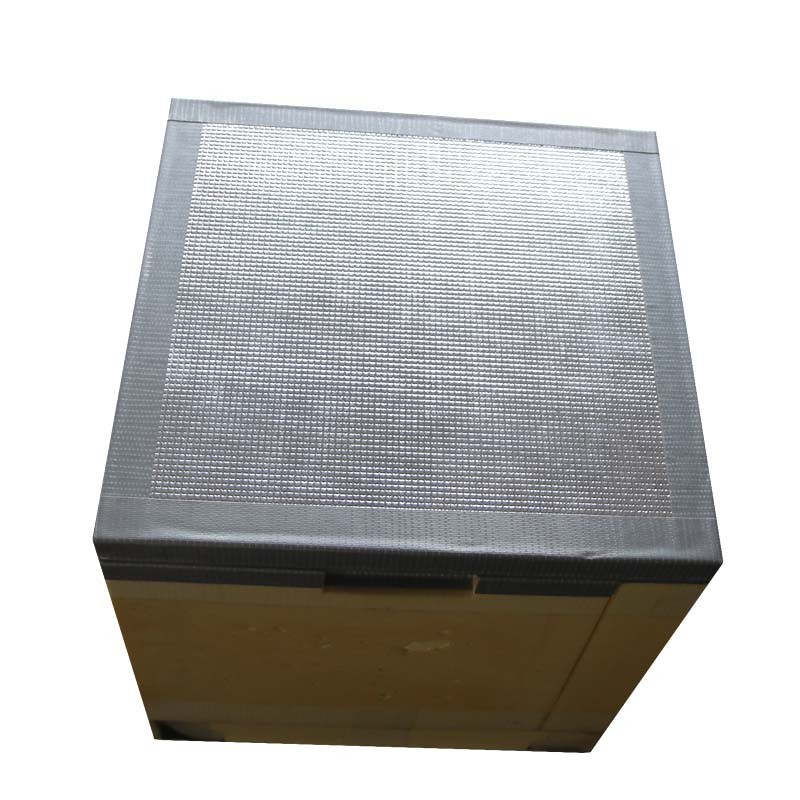

6CM 32L PU Insulation Medical Cooler Box Reagent Storage Container 0

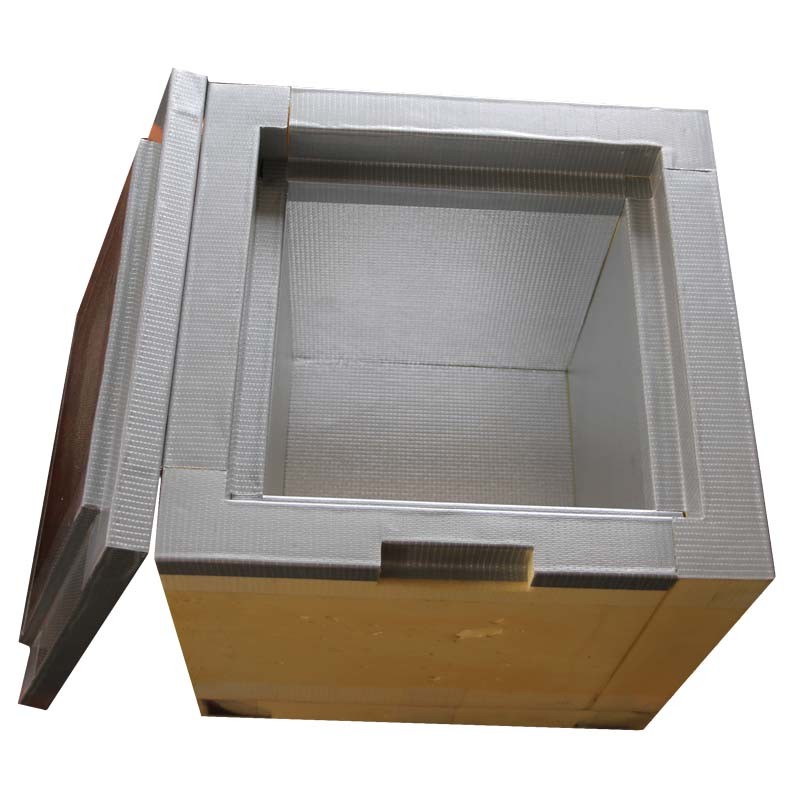

  6CM 32L PU Insulation Medical Cooler Box Reagent Storage Container 1

More Specification List
Item
Sepcification
with PCM
Material
BWX-8L
External size: 380x380x380mm
Internal size: 260x260x260mm
Capacity :17L
Inside size : 200x200x200mm

Avaliable Capacity :8L
Outside : Oxford bag or PE box

Inside : PU or VPU
BWX-27L
External size: 460x460x480mm
Internal size: 350x350x350mm
Capacity :42L
PCM : 33.7x 33.7x2.5cm - 6pcs
Inside size : 300x300x300mm
Avaliable Capacity :27L
Outside : Oxford bag or PE box

Inside : PU or VPU
BWX-50L
External size: 545x545x545mm
Internal size: 435x435x435mm
Capacity :82L
PCM:42x42x3cm - 6 pcs
Inside size : 380x380x3500mm
Avaliable Capacity :50L
Outside : Oxford bag or PE box

Inside : PU or VPU
BWX-85L
External size: 610x610x620mm
Internal size: 500x500x500mm
Capacity :125L
PCM :47.7x24x2.5cm - 12 pcs Inside size : 440x440x440mm
Avaliable Capacity :85L
Outside : Oxford bag or PE box

Inside : PU or VPU
BWX-90L
External size: 760x540x600mm
Internal size: 630x415x475mm
Capacity :124L
PCM :
46.5x31.7x2.5cm - 4pcs
46x41.2x2.5cm - 2pcs
41.2x31.4x2.5cm - 4pcs
Inside size : 580x365x425mm
Avaliable Capacity :90L
Outside : Oxford bag or PE box

Inside : PU or VPU

PU insulation material for 48 hours transport
The core material can be flexible to be PU foaming or VPU panels according to customers' thermal requirements !
PU +vip insulation material can hold 96 hours,even 120 hours

The following is the recommended solution according to the requirements

Instructions for use:


The First Step : Freeze PCM in a at 0 degrees or less freezer for at least 10 hours to ensure complete freezing. ( At the same time, if you need better cooling conditions, please also pre-cool the insulation cooler Box)

The Second Step : Take out the Frozen PCM and place it around the Insulation box and release cool about half an hour

The Third Step : Put in medicine,vaccine ,blood that needs to be cold storage, the last , place the top PCM and Cover the lid tightly.



The outer material can be adjustable to be matte film,oxford fabric cloth,plastic compound board or aluminum sheet !

Oxford fabric bag -can be use for medical cold storage

PE plastic box - can be use for ice cream box and medical cooler box

Carton packing - can be use for food fresh storage transport








Medical Cooler Box application:

Medical  cooler Boxes, are used to transport blood products, organs and pharmaceuticals that require stable temperatures to maintain their life saving and life giving properties.

Ideal For Transporting Medicines such as :
--Selected fresh food, drink and dairy products
--Vaccines
--Insulin
--Breeding Programs
--Biopharmaceutical, Life Science and other Medical Products
--IVD products and biological specimens






Inner cold sourse



Inner cold sourse - pcm phase change material ice brick:


PCM phase change material refers to the material whose state will vary with temperature and provide latent heat and the process of physical properties conversion is called phase change, when the amterial will absorb or release a large amount of latent heat. Our phase change materials temperature can be -40 ~ 100 centi degree, can according to customer request offer design and development. All products using food grade plastic packaging, nont-toxic, safe and environment, meet the requirements of mediccal and food safety.

The temperature range can be 55 degree C,15 degree C,2-8degree C, -10degree C, -15degree C, -18degree C,-20degree C,-25degree C and others, match differenet phase change ice box can keep 48H,72H,96H and others.

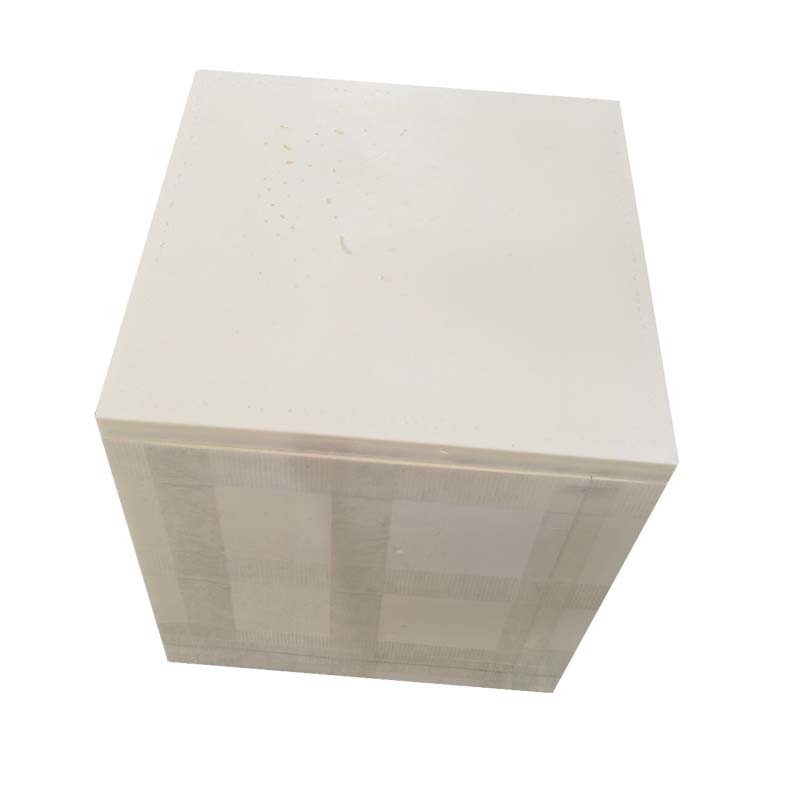

 6CM 32L PU Insulation Medical Cooler Box Reagent Storage Container 2
