Vaccine Carrier Portable Cold Chain Cooler Box 17L 42L 82L 125L
2 pieces
MOQ
50
Price
Vaccine Carrier Portable Cold Chain Cooler Box 17L 42L 82L 125L
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: JISILL
Certification: FDA,MSDS,CPSIA
Model Number: JS-2.5L
High Light:

Oxford Bag Oxford Bag Cold Chain Cooler Box

,

42L Cold Chain Cooler Box

,

Vaccine Carrier Portable Freezer Box

Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Sample: within 5 days, bulk order:10-15 days, according to the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability: 100 pieces/week
Specifications
Product Name: Vaccine Carrier Portable Cold Chain Cooler Box Transfer Bag
External Dimension: 295*215*260 Mm
Internal Dimension: 225*150*190mm
Capacity: 6.5L
Weight: 3kg
Outer Material: Oxford Bag Or Custom
Inside Materia: PU+Vacuum Insulation Panel
The Thermal Conductivity: <0.0025w/m.k
Product Description

Vaccine Carrier Portable Cold Chain Cooler Box Transfer bag

This is a Bio Medical Blood Transportation cooler bag, outer material is PE plastic or Oxford bag, and internal material is PU or VPU Splicing box, The combination of them can keep your contents cold for more than 72 h.PU or VPU provide energy efficiency and space benefits for home appliances, temperature-controlled packaging, refrigerated transportation systems and any other applications that require low energy loss from heat transfer.







Specification List
Item Specification With PCM Material
BWX-8L
External size: 380x380x380mm
Internal size: 260x260x260mm
Capacity :17L

PCM : 24.6X24.6X2.5cm - 6pcs

Inside size : 200x200x200mm

Avaliable Capacity :8L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-27L
External size: 460x460x480mm
Internal size: 350x350x350mm
Capacity :42L
PCM : 33.7x 33.7x2.5cm - 6pcs
Inside size : 300x300x300mm
Avaliable Capacity :27L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-50L
External size: 545x545x545mm
Internal size: 435x435x435mm
Capacity :82L
PCM:42x42x3cm - 6 pcs
Inside size : 380x380x3500mm
Avaliable Capacity :50L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-85L
External size: 610x610x620mm
Internal size: 500x500x500mm
Capacity :125L

PCM :47.7x24x2.5cm - 12 pcs

Inside size : 440x440x440mm

Avaliable Capacity :85L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-90L
External size: 760x540x600mm
Internal size: 630x415x475mm
Capacity :124L
PCM :
46.5x31.7x2.5cm - 4pcs
46x41.2x2.5cm - 2pcs
41.2x31.4x2.5cm - 4pcs
Inside size : 580x365x425mm
Avaliable Capacity :90L
Outside : Oxford bag or PE box
Inside : PU or VPU
PU insulation material for 72 hours transport

PU +vip insulation material can hold 96 hours,even 120 hours

The following is the recommended solution according to the requirements







Instructions for use:


The First Step : Freeze PCM in a at 0 degrees or less freezer for at least 10 hours to ensure complete freezing. ( At the same time, if you need better cooling conditions, please also pre-cool the insulation cooler Box)

The Second Step : Take out the Frozen PCM and place it around the Insulation box and release cool about half an hour

The Third Step : Put in medicine,vaccine ,blood that needs to be cold storage, the last , place the top PCM and Cover the lid tightly.

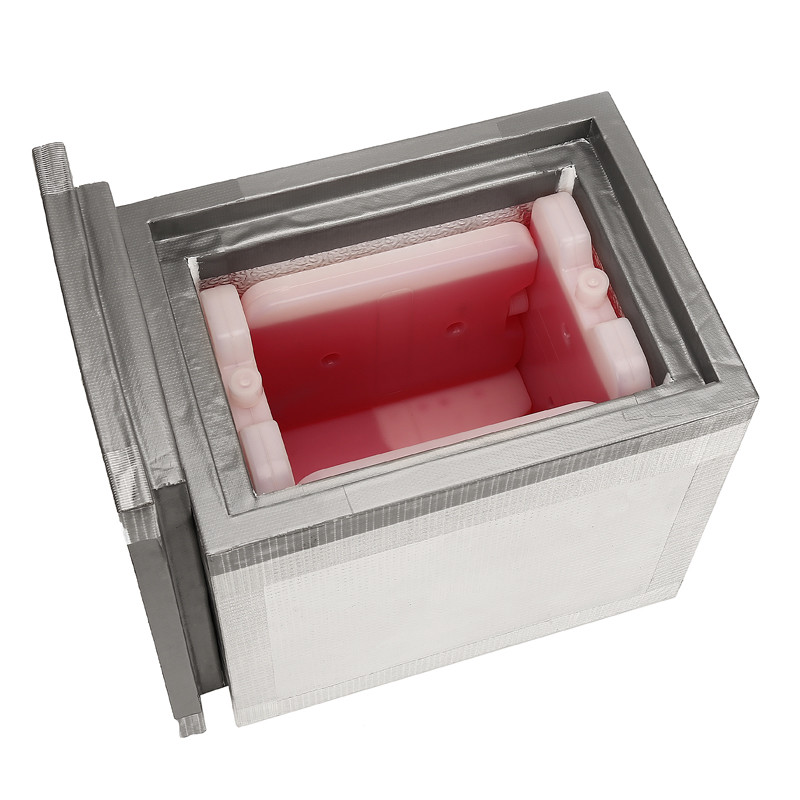

Box Structure Description:




- WE ARE DIFFERENT !

After several times of research and testing, Self-assembling pu insulation box have applied for our company's Patent. PCM cold palte can meet for different temperature request.



Vaccine Carrier Portable Cold Chain Cooler Box 17L 42L 82L 125L 0

Vaccine Carrier Portable Cold Chain Cooler Box 17L 42L 82L 125L 1



-Precise design allows for seamless self-assembly
-Save transportation costs

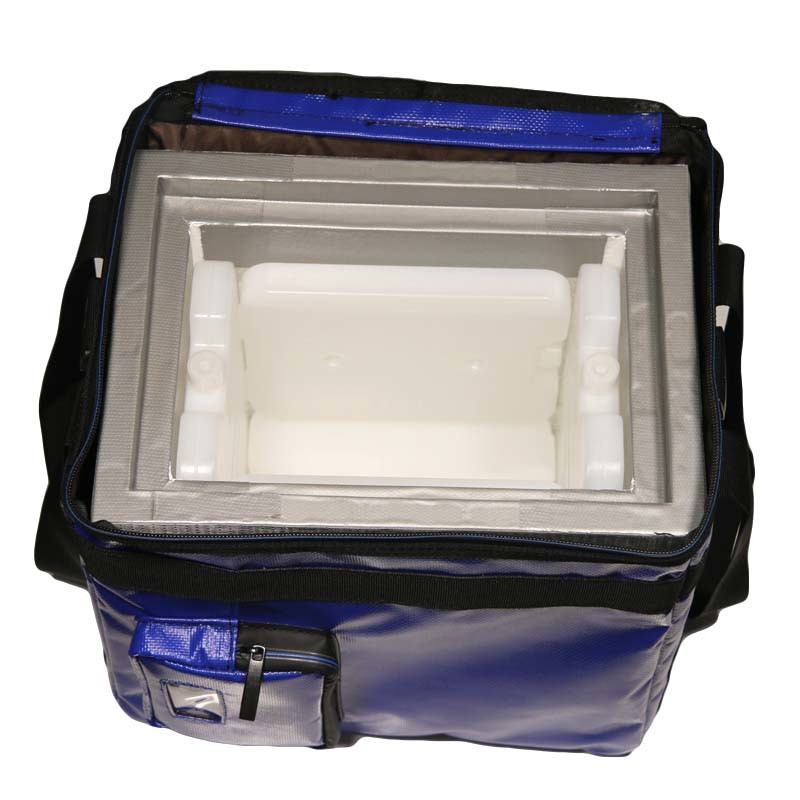

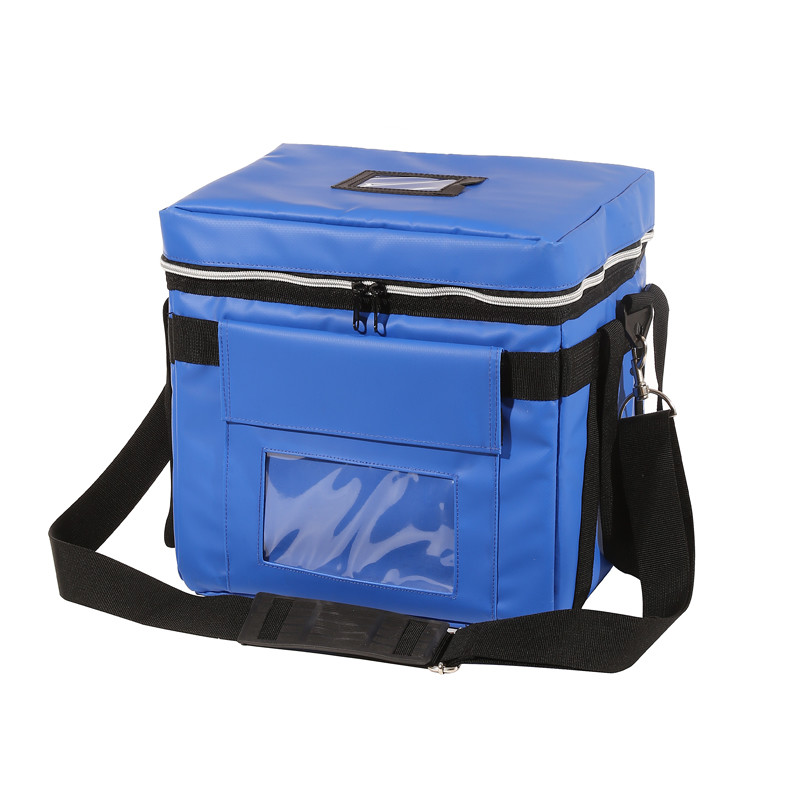

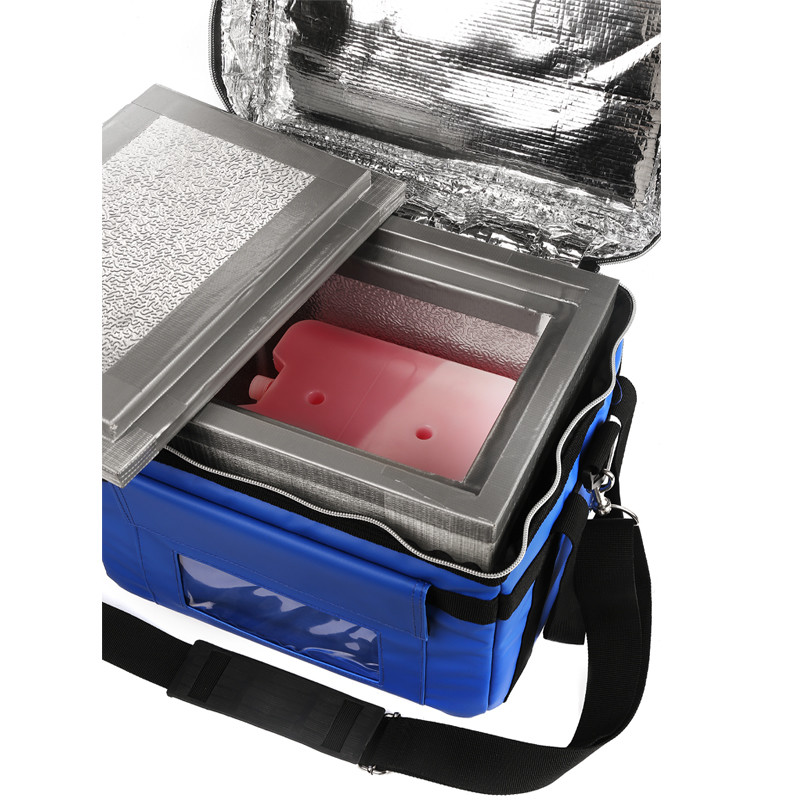

Product show

Vaccine Carrier Portable Cold Chain Cooler Box 17L 42L 82L 125L 2Vaccine Carrier Portable Cold Chain Cooler Box 17L 42L 82L 125L 3Vaccine Carrier Portable Cold Chain Cooler Box 17L 42L 82L 125L 4






PU-VIP Insulation Cooler Box application:

Medical  cooler Boxes, are used to transport blood products, organs and pharmaceuticals that require stable temperatures to maintain their life saving and life giving properties.

Ideal For Transporting Medicines such as :
-- Selected fresh food, drink and dairy products
-- Vaccines
-- Insulin
-- Breeding Programs
-- Biopharmaceutical, Life Science and other Medical Products
-- IVD products and biological specimens
