VPU Material Insulation Cold Storage Medical Cool Box , Portable Cooler Box
50 pieces
MOQ
56.5
Price
VPU Material Insulation Cold Storage Medical Cool Box , Portable Cooler Box
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: JISILL
Certification: FDA,MSDS,CPSIA
Model Number: JS-019
High Light:

medicine ice box

,

medical ice box

Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Sample: within 5 days, bulk order:10-15 days, according to the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability: 100 pieces/week
Specifications
Product Name: VPU Material Insulation Cold Storage Box For Medicine Transport
External Dimension: 46x46x46cm
Internal Dimension: 35x35x35cm
Capacity: 42L
Weight: 3kg
Outer Material: Carton, Oxford Fabric Bag, PE Plastic Box Or Custom
Inside Materia: PU+Vacuum Insulation Panel
The Thermal Conductivity: <0.0025w/m.k
Product Description

VPU Material Insulation Cold Storage Box For Medicine Transport

Product information:



Item JS-019
Dimension
  • External: 46x46x46cm
  • Internal: 35x35x35cm
Capacity 42L
Material
  • Outer: Can be customized
  • Inner: pu+ vacuum insulation panel (VIP)
  • The core: polyurethane+fiberglass
The thermal conductivity <0.0025w/m.k
Coolant Series PCM phase change materials





PU-VIP material is packaged in a vacuum state as a inner material with a very strong heat insulating property. PU foam moulding, have super thermal insulation, the thermal conducitivity is lower than 0.0025w/m.k., match PCM phase change material can control the temperature precisely for 120H without power supply, enterprises can flexibly choose and reasonable collocation shceme, this can greatly simplify operating, reduce lobor costs. For pharmaceutical logistics enterprises to solve transport problems.
Ice Cooler Box with PU+Vacuum insulation panel - can keep box temperature 2C-8C for 72 hours,even for a longer time.

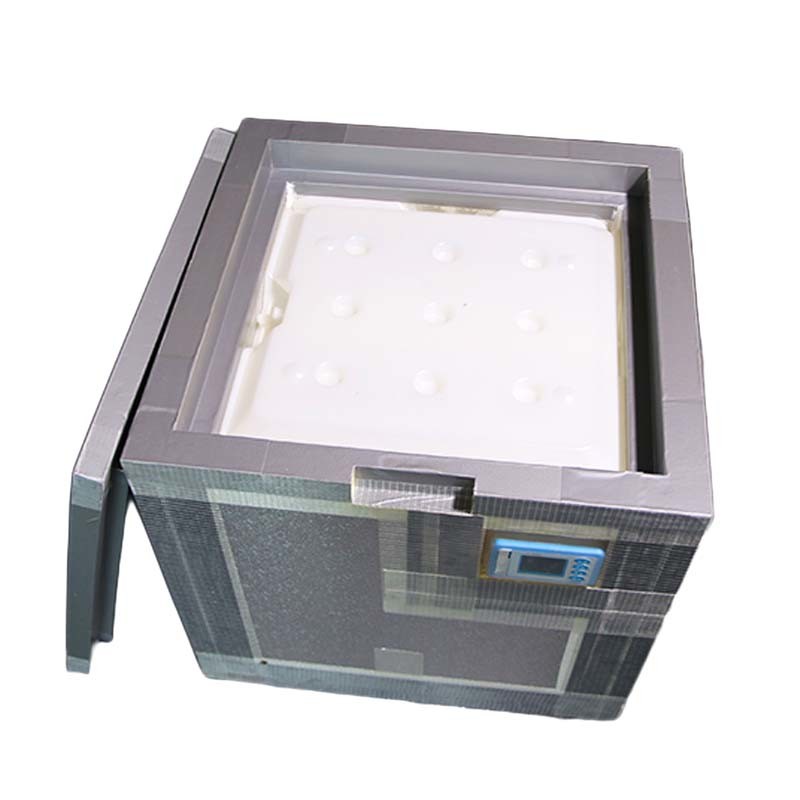

VPU Material Insulation Cold Storage Medical Cool Box , Portable Cooler Box 0



Product show

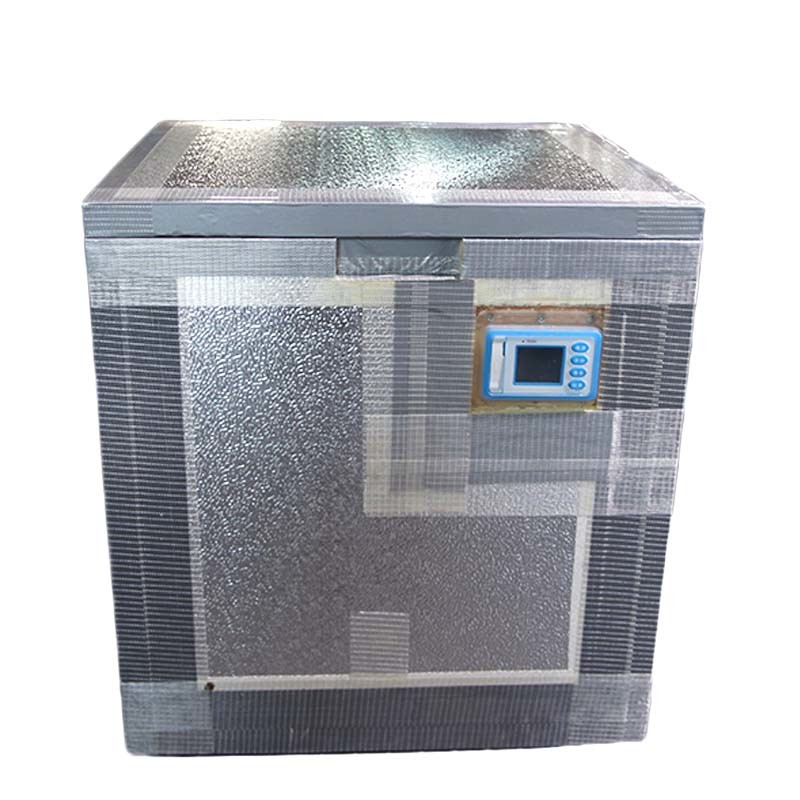

 VPU Material Insulation Cold Storage Medical Cool Box , Portable Cooler Box 1

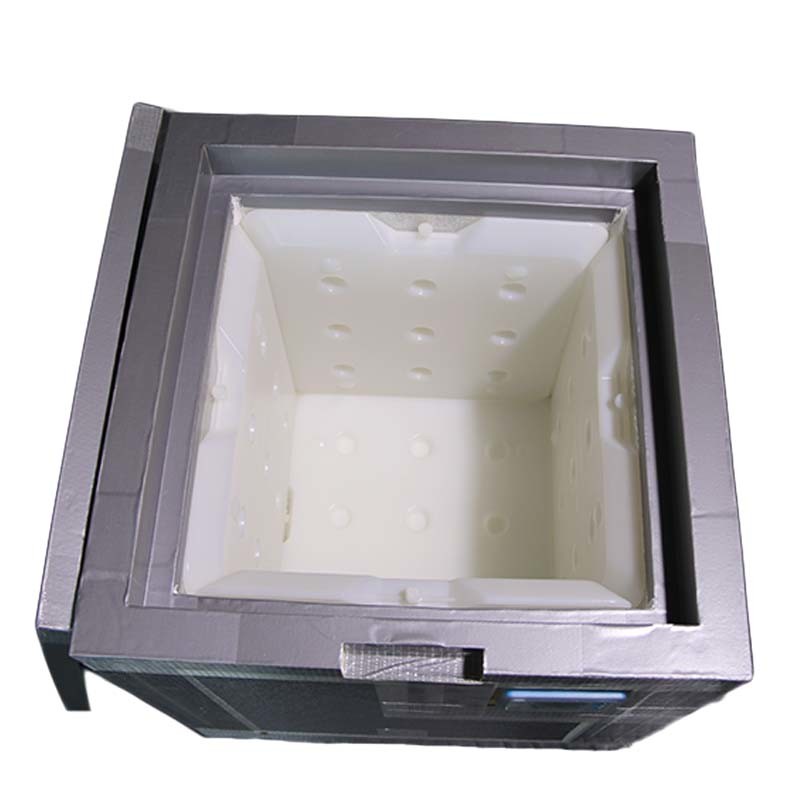

 VPU Material Insulation Cold Storage Medical Cool Box , Portable Cooler Box 2



Medical Cooler Box application:

Medical  cooler Boxes, are used to transport blood products, organs and pharmaceuticals that require stable temperatures to maintain their life saving and life giving properties.

Ideal For Transporting Medicines such as :
--Selected fresh food, drink and dairy products
--Vaccines
--Insulin
--Breeding Programs
--Biopharmaceutical, Life Science and other Medical Products
--IVD products and biological specimens


Test Result:

Testing environment temperature - 35 Celsius degree:

1) 2-8 celsius degree cold source keep cold 48 hours
2) -20 celsius degree cold source keep cold 40 hours


External combination type

1.PE plastic box - can be use for ice cream transport
VPU Material Insulation Cold Storage Medical Cool Box , Portable Cooler Box 3

2. Oxford fabric bag -can be use for medical cold storage

VPU Material Insulation Cold Storage Medical Cool Box , Portable Cooler Box 4

3,Carton packing - can be use for food fresh storage transport

VPU Material Insulation Cold Storage Medical Cool Box , Portable Cooler Box 5


Inner cold sourse



Inner cold sourse - pcm phase change material ice brick:


PCM phase change material refers to the material whose state will vary with temperature and provide latent heat and the process of physical properties conversion is called phase change, when the amterial will absorb or release a large amount of latent heat. Our phase change materials temperature can be -40 ~ 100 centi degree, can according to customer request offer design and development. All products using food grade plastic packaging, nont-toxic, safe and environment, meet the requirements of mediccal and food safety.

The temperature range can be 55 degree C,15 degree C,2-8degree C, -10degree C, -15degree C, -18degree C,-20degree C,-25degree C and others, match differenet phase change ice box can keep 48H,72H,96H and others.

 VPU Material Insulation Cold Storage Medical Cool Box , Portable Cooler Box 6
