20L EPP Material Medical Storage Insulin Cooling Box Cold Chain Box / Bag
1
MOQ
51
Price
20L EPP Material Medical Storage Insulin Cooling Box Cold Chain Box / Bag
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: JISILL
Certification: FDA,MSDS,CPSIA
Model Number: JS-EPP20L
High Light:

medical ice box

,

medicine cooler box

Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Sample: within 5 days, bulk order:10-15 days, according to the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability: 100 pieces/week
Specifications
Product Name: 20L EPP Material Medical Storage Cooler Box Cold Chain Box
External Dimension: 450x284x330mm
Capacity: 20L
Outer Material: Oxford Bag
Inside Materia: EPP Foam
Cold Source: PCM Based Demands
Product Description

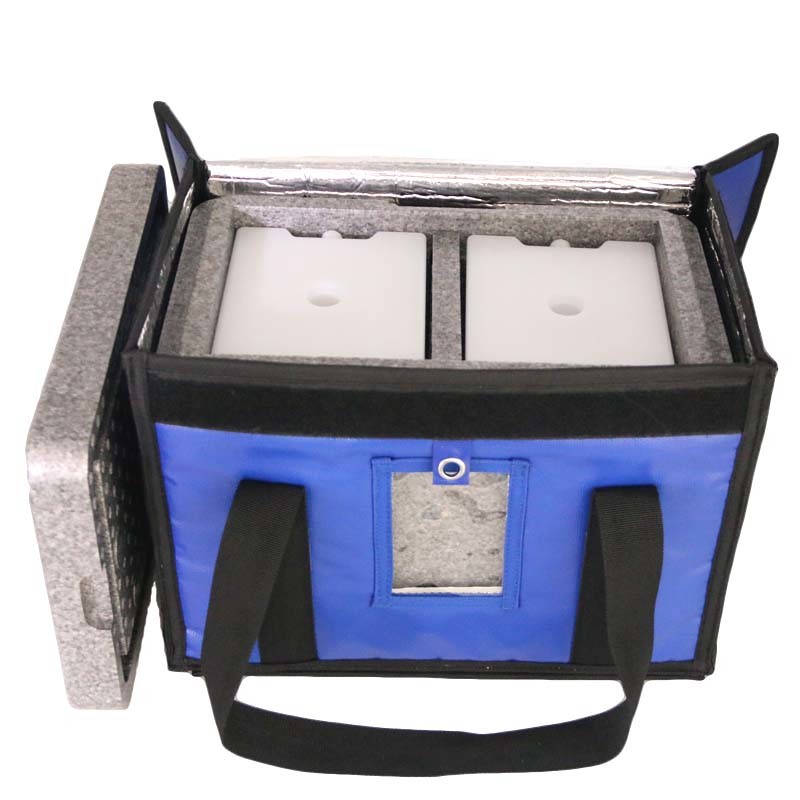

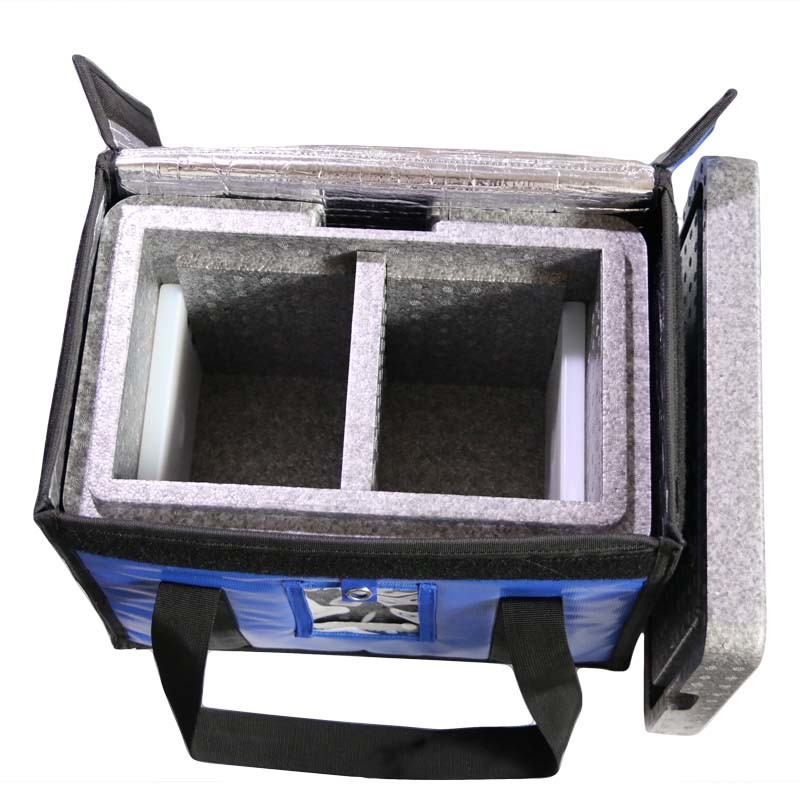

20L EPP Material Medical Storage Cooler Box Cold Chain Box



This is a Available Volume 20 L cooler box, outer material is EPP or Oxford bag, The combination of them can keep your contents cold for 10-20Hours



Product information:




Item JS-EPP20L
Dimension
  • External :450x284x330mm
  • External :350x234x255mm
  • External : 410x274x300mm
Available Capacity 20L
Material
  • Outer: Oxford bag
  • Inner: EPP FOAM
Inner  thickness 30mm
Coolant Series 2-8 degrees PCM phase change materials



Please contact if have more requirement , for example: Quantity, material request, and Add a temperature indicator or temperature recorder And request keep for longer time.





Instructions for use


The First Step : Freeze PCM in a at 0 degrees or less freezer for at least 10 hours to ensure complete freezing. ( At the same time, if you need better cooling conditions, please also pre-cool the insulation cooler Box)

The Second Step :Take out the Frozen PCM and place it around the Insulation box and release cool about half an hour

The Third Step : Put in medicine,vaccine ,blood that needs to be cold storage, the last , place the top PCM and Cover the lid tightly.

20L EPP Material Medical Storage Insulin Cooling Box Cold Chain Box / Bag 020L EPP Material Medical Storage Insulin Cooling Box Cold Chain Box / Bag 1


IF YOU NEED BETTER INSULATION PERFORMANCE


PU insulation material for 72 hours transport
The core material can be flexible to be PU foaming or VPU panels according to customers' thermal requirements !
PU +vip insulation material can hold 96 hours,even 120 hours

The outer material can be adjustable to be matte film,oxford fabric cloth,plastic compound board or aluminum sheet !



Recommend the below specification :



Specification List
Item Specification With PCM Material
BWX-8L
External size: 380x380x380mm
Internal size: 260x260x260mm
Capacity :17L

PCM : 24.6X24.6X2.5cm - 6pcs

Inside size : 200x200x200mm

Avaliable Capacity :8L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-27L
External size: 460x460x480mm
Internal size: 350x350x350mm
Capacity :42L
PCM : 33.7x 33.7x2.5cm - 6pcs
Inside size : 300x300x300mm
Avaliable Capacity :27L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-50L
External size: 545x545x545mm
Internal size: 435x435x435mm
Capacity :82L
PCM:42x42x3cm - 6 pcs
Inside size : 380x380x3500mm
Avaliable Capacity :50L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-85L
External size: 610x610x620mm
Internal size: 500x500x500mm
Capacity :125L

PCM :47.7x24x2.5cm - 12 pcs

Inside size : 440x440x440mm

Avaliable Capacity :85L
Outside : Oxford bag or PE box
Inside : PU or VPU
BWX-90L
External size: 760x540x600mm
Internal size: 630x415x475mm
Capacity :124L
PCM :
46.5x31.7x2.5cm - 4pcs
46x41.2x2.5cm - 2pcs
41.2x31.4x2.5cm - 4pcs
Inside size : 580x365x425mm
Avaliable Capacity :90L
Outside : Oxford bag or PE box
Inside : PU or VPU
20L EPP Material Medical Storage Insulin Cooling Box Cold Chain Box / Bag 220L EPP Material Medical Storage Insulin Cooling Box Cold Chain Box / Bag 3
