This is a 27 L cooler box, outer material is PE plastic, and internal material is vacuum insulation panel box, The combination of them can keep your contents cold for 90 h.VIPs provide energy efficiency and space benefits for home appliances, temperature-controlled packaging, refrigerated transportation systems and any other applications that require low energy loss from heat transfer.
|Item||Dimension(cm)||Capacity||Material||Cold source (ice brick)|
|JS-008||The external size: 38.2*38.2*38.2cm The internal size: 30*30*30cm||27L||
Outer:Plastic; Inside:Vacuum Insulation Panel;
The core material:glass fiber
|rigid ice pack|
TECHNICAL INFORMATION; Vacuum insulation panel cooler box offers a solution to the problem of maintaining critical protection and thermal stability over long distances for transporting vaccines, medication and food contents. It can be held at between +2ºC and +8ºC for more than 72 hours in an ambient temperature of 35ºC, and for in excess of 50 hours in an ambient temperature of - 25ºC. We have PCM (Phase Change Material) ice pack designed for our cooler box that will satisfy many different ambienttemperature requests, Required Temperature Range and holding times from the user. There are many different configurations for the use of this super box - please send in your enquiry stating required internal temperature range, minimum holding time and contents and we will be happy to suggest the correct box and phase change product to give you what you require. Product structure;
The insulation layer is composed of VIP+PU, and the insulation effect of the three-layer insulation layer is better than that of the second layer.
All goods are passed FDA MSDS CPSIA and CE approved!
Vacuum insulation panels;
It is high performance microporous insulation panels covered in an impermeable polymer outer envelope which is heat sealed under vacuum to optimise the thermal performance.
The core of the panel insulation is Superfine glass fiber, it is a blend of filament reinforced silica and an opacifier. The outer envelope is an ultra-low permeation barrier film that comprises multiple metalised polymer layers. Exact barrier film specification may vary according to the application.
Core material is non-combustible and complies to the requirements of DIN4102. It is environmentally safe and completely recyclable.
We have exsiting 1cm,1.5cm and 2cm thickness.
Yes, we can do your any shape and size. Welcomed!

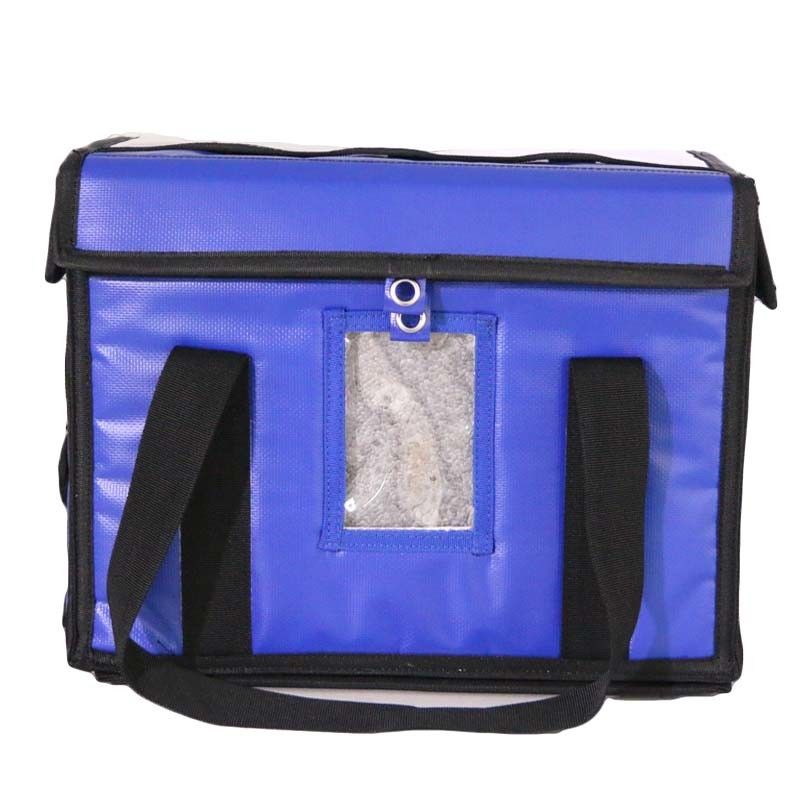

Our cooler box consists of a vacuum insulation board and ice packs, and an Oxford cloth bag on the outside.
