Portable 4L Vaccine Carrier Box For 2 - 8 C Storage

100
MOQ
$40
Price
Portable 4L Vaccine Carrier Box For 2 - 8 C Storage
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Customize Portable 4L Small Vaccine Carrier Box For 2-8 C Storage
External Dimension: 23*17*17cm
Internal Dimension: 21*14*14cm
Capacity: 4L
Weight: 1kg
Outer Material: Oxford Fabric
Inside Materia: Vacuum Insulation Panel
The Thermal Conductivity: <0.0025w/m.k
High Light:

4L Vaccine Carrier Box

,

4L Portable Vaccine Carrier Box

,

FDA Vaccine Carrier Box

Basic Infomation
Place of Origin: China
Brand Name: JS
Certification: FDA,MSDS,CPSIA
Model Number: JS-007
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Sample: within 5 days, bulk order:10-15 days, according to the order quantity
Payment Terms: T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability: 100 pieces/week
Product Description
Customize Portable 4L Small Vaccine Carrier Box for 2-8 C Storage

Product information:





Item JS-007
Dimension
  • External: 230x170x170mm
  • Internal: 210x140x140mm
Capacity 4L
Material
  • Outer: oxford fabric
  • Inner: vacuum insulation panel (VIP)
  • The core: fiberglass
Inner vip thickness 20mm
The thermal conductivity <0.0025w/m.k
Cold Source Custom ice brick








Product Pictures

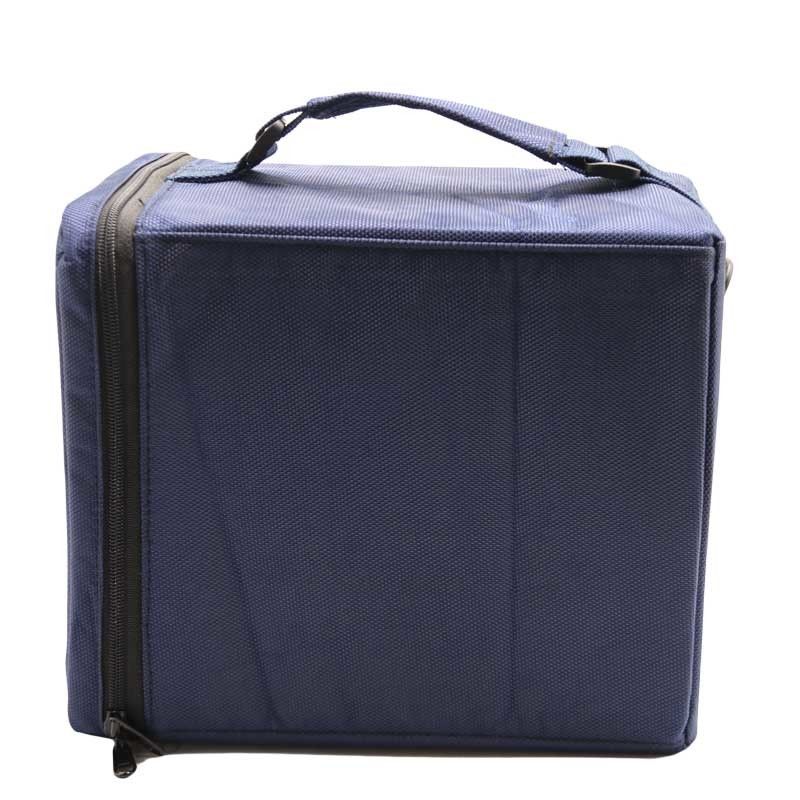

Portable 4L Vaccine Carrier Box For 2 - 8 C Storage 0Portable 4L Vaccine Carrier Box For 2 - 8 C Storage 1







PU-VIP material is packaged in a vacuum state as a inner material with a very strong heat insulating property. PU foam moulding, have super thermal insulation, the thermal conducitivity is lower than 0.0025w/m.k., match PCM phase change material can control the temperature precisely for 120H without power supply, enterprises can flexibly choose and reasonable collocation shceme, this can greatly simplify operating, reduce lobor costs. For pharmaceutical logistics enterprises to solve transport problems.
Ice Cooler Box with PU+Vacuum insulation panel - can keep box temperature 2C-8C for 24 hours,even for a longer time.







Small Vaccine Carrier Box application:

Medical cool Boxes, are used to transport blood products, organs and pharmaceuticals that require stable temperatures to maintain their life saving and life giving properties.

Ideal For Transporting Medicines such as :
--Vaccines
--Insulin
--Breeding Programs
--Biopharmaceutical, Life Science and other Medical Products
--IVD products and biological specimens
--Selected fresh food, drink and dairy products


Usage:
It can be put into plastic box or bags,also can be used separately.





Inner cold sourse - pcm phase change material ice brick:



PCM phase change material refers to the material whose state will vary with temperature and provide latent heat and the process of physical properties conversion is called phase change, when the amterial will absorb or release a large amount of latent heat. Our phase change materials temperature can be -40 ~ 100 centi degree, can according to customer request offer design and development. All products using food grade plastic packaging, nont-toxic, safe and environment, meet the requirements of mediccal and food safety.



The temperature range can be 55 degree C,15 degree C,2-8degree C, -10degree C, -15degree C, -18degree C,-20degree C,-25degree C and others, match differenet phase change ice box can keep 48H,72H,96H and others.





16.5x9.7x3cm,400g

Portable 4L Vaccine Carrier Box For 2 - 8 C Storage 2
