Medicine Vaccine Blood Vacuum Insulated Panel Glass Fiber Material

Negotiation
MOQ
Negotiation
Price
Medicine Vaccine Blood Vacuum Insulated Panel Glass Fiber Material
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Heat Insulation Materials
Thickness: 2CM And Customized
Thermal Conductivity: ≤0.002 W/mk
Density: ≤5kg/m2
Compression Strength: ≥0.12MPa
Core Material: Superfine Glass Fiber
Working Temperature: -50~150°C
Size: 100*160cm
High Light:

foam insulation board

,

insulation foam board

Basic Infomation
Place of Origin: China
Brand Name: JISI
Certification: SGS MSDS CE
Model Number: VIP001
Payment & Shipping Terms
Packaging Details: Carton packing
Delivery Time: 2-3 work days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 3000㎡ per day
Product Description

Medicine Vaccine Blood Vacuum Insulated Panel Glass Fiber Material





Product Details:

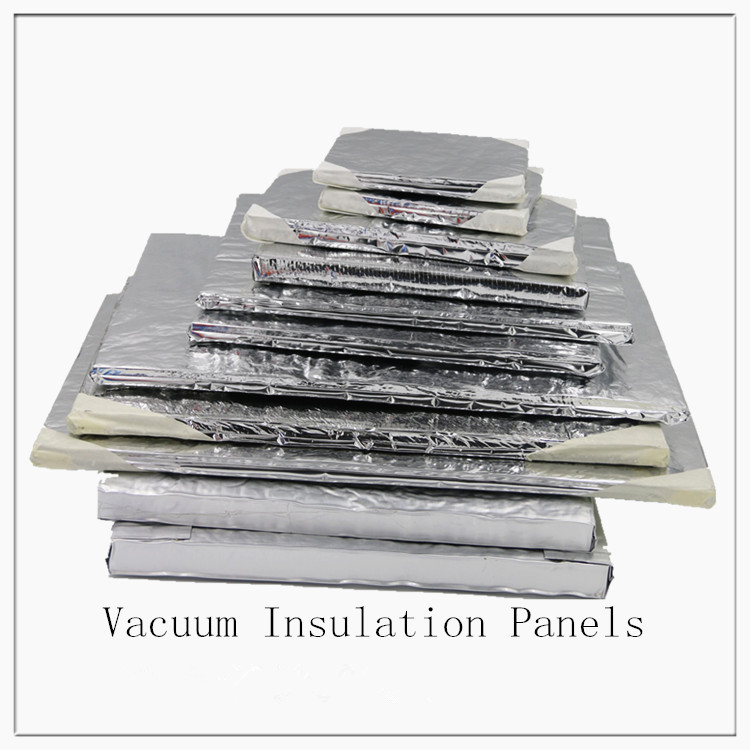

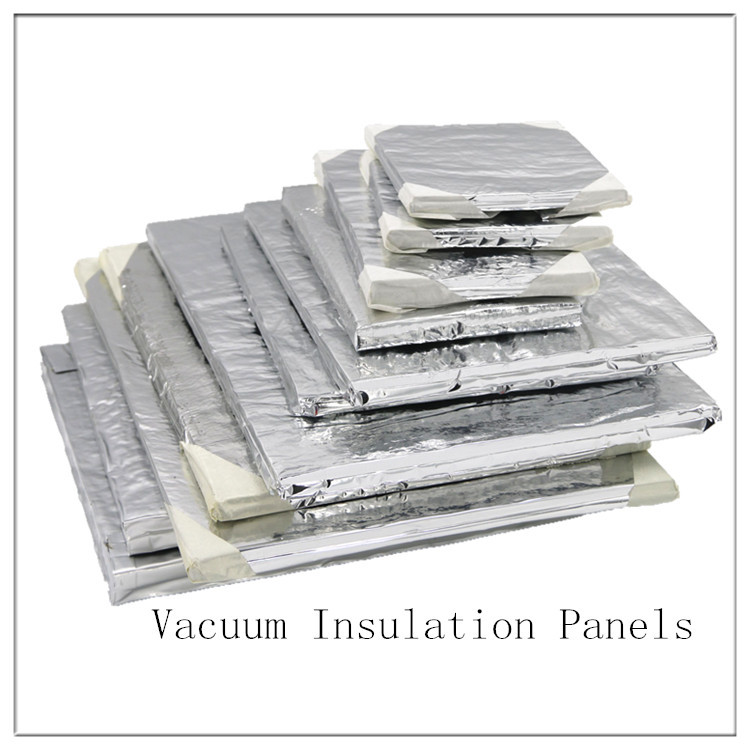

A Vacuum Insulation Panel :

It is high performance microporous insulation panels covered in an impermeable polymer outer envelope which is heat sealed under vacuum to optimise the thermal performance.

The core of the panel insulation is Superfine glass fiber, it is a blend of filament reinforced silica and an opacifier. The outer envelope is an ultra-low permeation barrier film that comprises multiple metalised polymer layers. Exact barrier film specification may vary according to the application.

core material is non-combustible and complies to the requirements of DIN4102. It is environmentally safe and completely recyclable.







Items
Unit
Performance
Brand
Surface Density(10mm as sample)
kg/m2
≤ 5




LS
Thermal Conductivity
W/mk
≤0.002
Tensile Strength
MPa
≥0.10
Compression Strength MPa ≥0.12
Combustion Performance Class A1
Volatile Water Absorption Rate(V/V) % ≤ 1.5






Applications;

· Commercial Refrigeration Equipment including: Beverage Coolers,Refrigerators and Freezers

· Refrigerated Vending Machines

· Residential Refrigerators and Freezers

· Mobile Refrigeration and Cold Chain Solutions such as Insulated shipping containers and temperature controlled transportation solutions

· Water Heaters

· Construction, Home Building Material

· Medical Vaccine



Accessories;

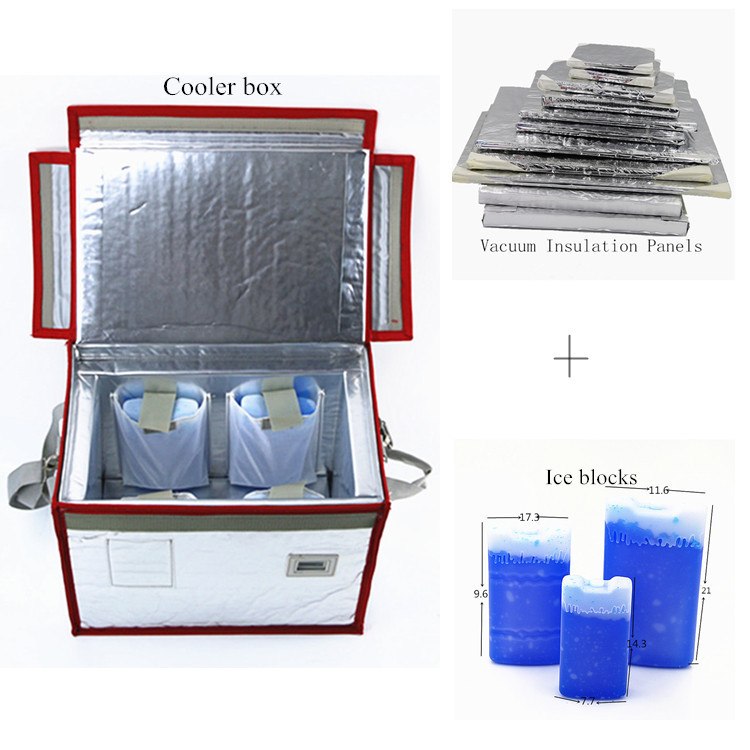

VIP Vacuum Insulation Panel and ice pack toghther put in cooler bag can keep your contents cold for 48h,72h,96h,100h,and 200h.VIPs provide energy efficiency and space benefits for home appliances, temperature-controlled packaging, refrigerated transportation systems and any other applications that require low energy loss from heat transfer.



Medicine Vaccine Blood Vacuum Insulated Panel Glass Fiber Material 0

Ice pack;

These solid Cooler Ice Packs are perfect for keeping your drinks cool for hours. These ice packs are perfectly sized to fit in all types of lunch bags and boxes. With the Cool Coolers Ice Packs, it will stay safe and fresh from morning until lunch and beyond! Keep these lunch ice packs in the freezer for several hours until they are frozen throughout and they'll keep your lunch crisp and cool until you have a chance to sit and enjoy your lunch. We know how it is to have a busy life style, let us take care of keeping lunch fresh!

Material:Made from FDA Approved, BPA Free, Food Safe Plastic.




Advantages:

  • we are a professional factory, manufacturers.
  • we have the blow molding machine, injection molding machine and ultrasound machine.
  • we can customize your products.
  • we have many kinds of temperature formula, for example, 2-8 degrees, 4 to 5 degrees, 10 degrees below zero, 15 degrees below zero, 25 degrees below zero, etc.
  • high productivity and fast delivery.
