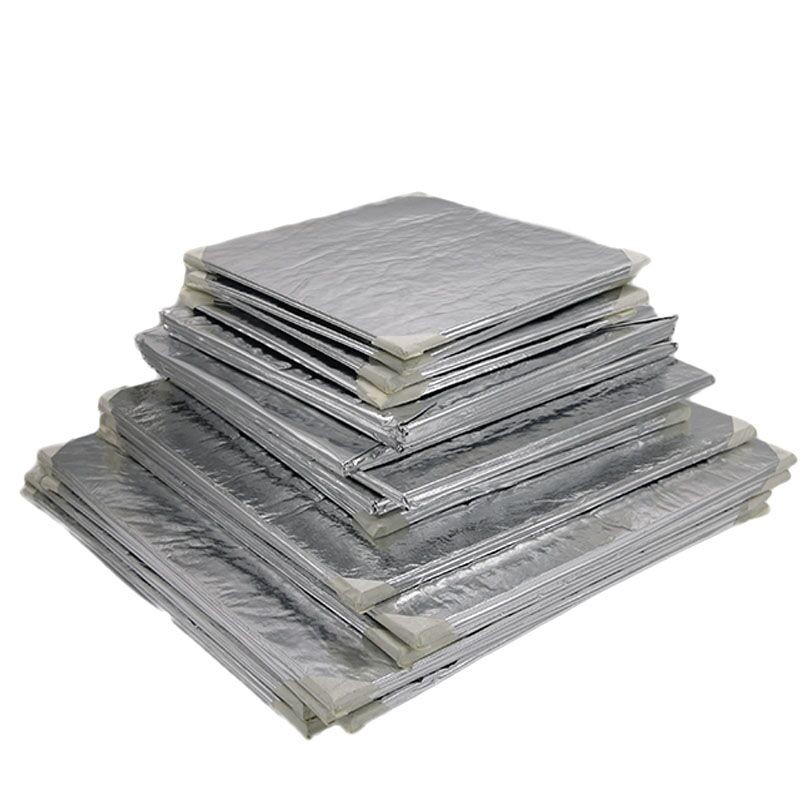

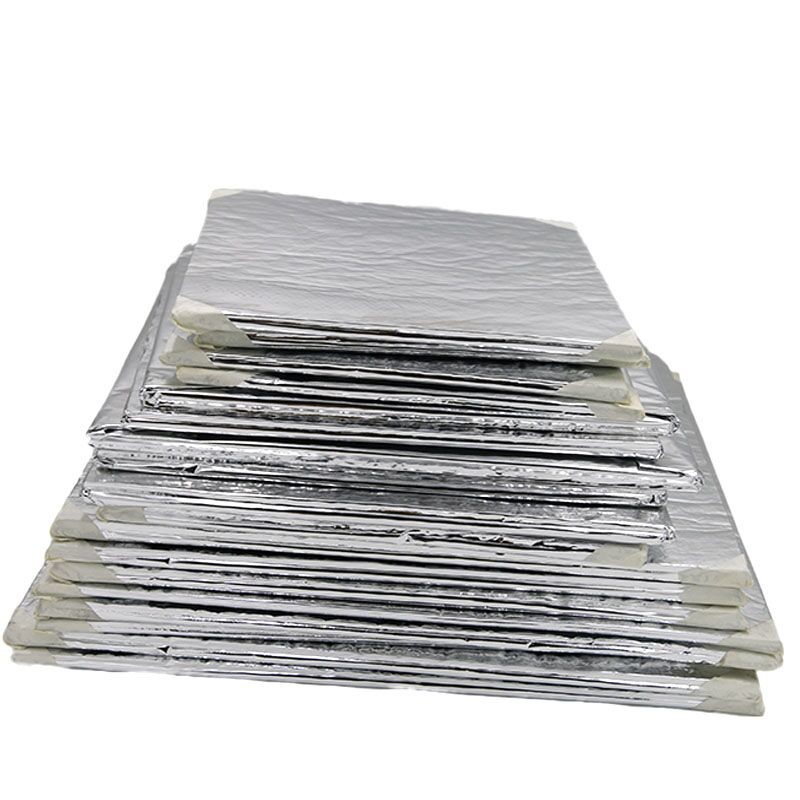

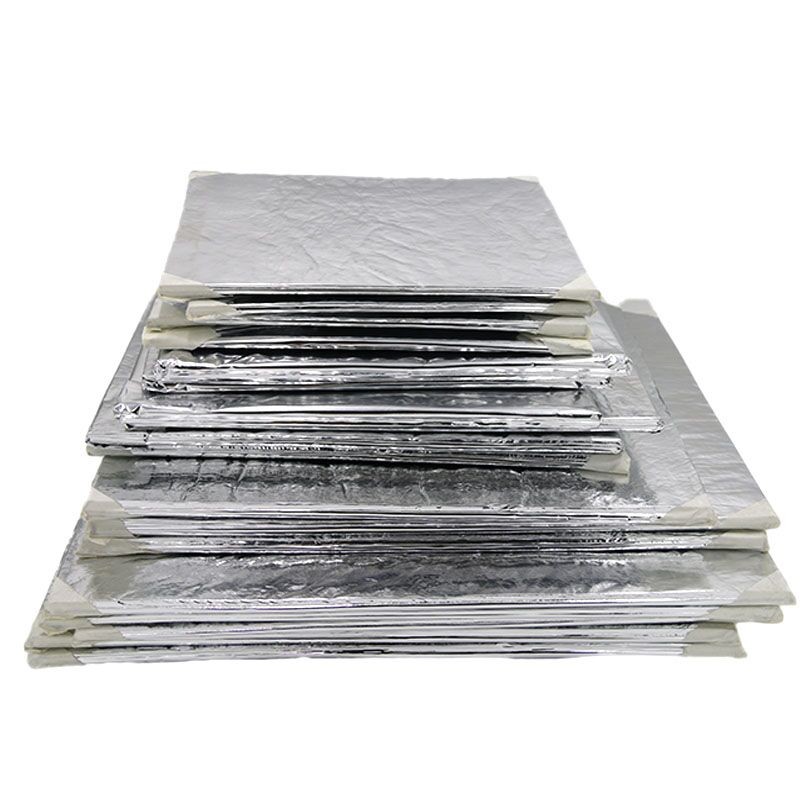

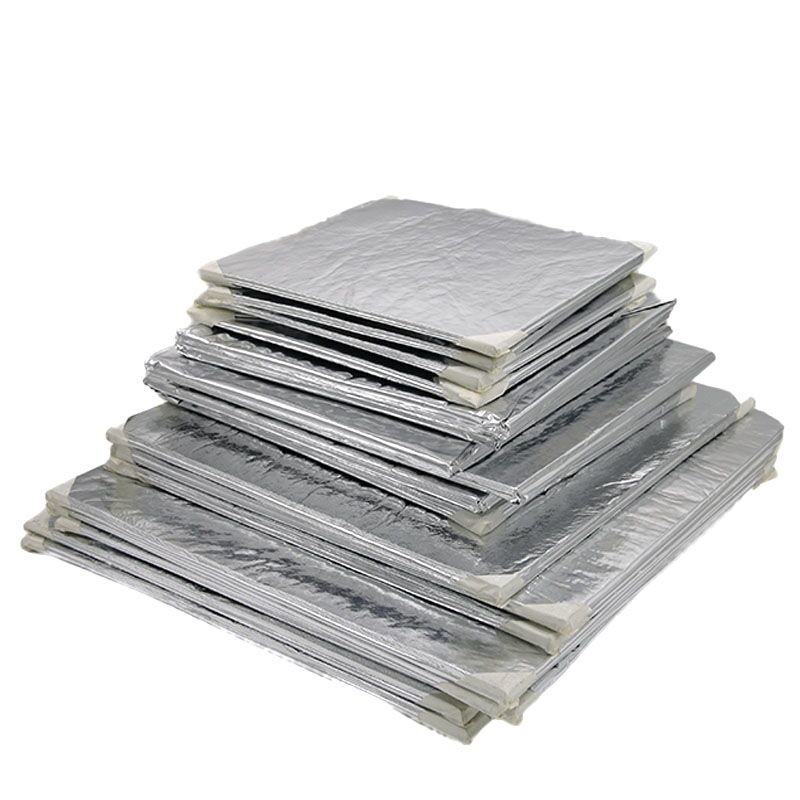

Vacuum Insulated Panel Food Grade Foam Insulation Board

Negotiation
MOQ
Negotiation
Price
Vacuum Insulated Panel Food Grade Foam Insulation Board
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Heat Insulation Materials
Thickness: 1.5CM
Thermal Conductivity: ≤0.002 W/mk
Core Material: Superfine Glass Fiber
Outer Size For EPP Box: 420*250*260 Mm
Inter Size For EPP Box: 325*180*160 Mm
Capacity For EPP Box: 9L
Weight For EPP Box: 2.1kg
Highlight:

thermal insulation panels

,

insulation foam board
Basic Infomation
Place of Origin: China
Brand Name: JISI
Certification: SGS MSDS CE
Model Number: VIP001
Payment & Shipping Terms
Packaging Details: Carton packing
Delivery Time: 2-3 work days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 3000㎡ per day
Product Description

Vacuum Insulated Panel Food Grade Foam Insulation Board


Product Details:


A Vacuum Insulation Panel :
VIP is the Vacuum Insulation Panel abbreviation of English; it is one of the Insulation materials, it is by the core filling materials and vacuum protection surface layer compound and into, it effectively avoid air convection caused by heat transfer, therefore coefficient of thermal conductivity can be greatly reduced, less than 0.0025 w/m.k, and does not contain any OD materials, it has the characteristics of environmental protection and energy efficient, the world's most advanced efficient heat preservation material.



Core Materials: Superfine glass fiber
Vacuum Insulated Panel Food Grade Foam Insulation Board 0





Cooler box;
Inside the cooler box were VIP Vacuum Insulation Panel and ice pack, they can keep your contents cold for 48h,72h,96h,100h,and 200h.VIPs provide energy efficiency and space benefits for home appliances, temperature-controlled packaging, refrigerated transportation systems and any other applications that require low energy loss from heat transfer.


Applications;

· Commercial Refrigeration Equipment including: Beverage Coolers,Refrigerators and Freezers

· Refrigerated Vending Machines

· Residential Refrigerators and Freezers

· Mobile Refrigeration and Cold Chain Solutions such as Insulated shipping containers and temperature controlled transportation solutions

· Water Heaters

· Construction, Home Building Material

· Medical Vaccine


Advantages ;
The thermal conductivity of VIP with a Superfine glass fiber core is about 0.002W/(m•K) after production. By comparison, thermal conductivities of conventional insulation materials are typically between 0.030 and 0.040 W/(m•K).

Hot selling items;
Cool packs
A ice pack is manufactured using food grade HDPE plastic containers and after filling the containers with coolant are sealed using our Ultrasonic machine which ensures a leak free.



Features
  • New food grade material, HDPE;
  • Inside is polymer cool storage material (SAP or CMC);
  • BPA free,and safe;
  • Perfect sealing, ultrasonic welding.
  • Transparent appearance, beautiful.
  • High efficiency, reusable .
usage

(Can used in hospitals, epidemic prevention station, schools, scientific research laboratory for tests,
blood tests, bacterial culture.)


  • Expendable refrigerant,
  • Processed food chilling and freezing
  • Heat-treating of metals,
  • Blood & Tissue sample preservation
  • Dry ice can hold the temperature in a refrigeration unit that is temporarily down.,
  • Vented coolers for hunting, fishing, and camping,
  • Special effects.
CertificatesFDA MSDS CE


Why choose us?

  • we are a professional factory, manufacturers.
  • we have the blow molding machine, injection molding machine and ultrasound machine.
  • we can customize your products.
  • we have many kinds of temperature formula, for example, 2-8 degrees, 4 to 5 degrees, 10 degrees below zero, 15 degrees below zero, 25 degrees below zero, etc.
  • high productivity and fast delivery.
