Ultra Thin Meidicine Vacuum Insulated Panels Thermal Insulation Panels

Negotiation
MOQ
Negotiation
Price
Ultra Thin Meidicine Vacuum Insulated Panels Thermal Insulation Panels
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Superfine Glass Fiber Heat Insulation Materials
Thickness: 1CM And Customized
Thermal Conductivity: ≤0.002 W/mk
Core Material: Superfine Glass Fiber / PU
Density: ≤5kg/m2
Compression Strength: ≥0.12MPa
Color: Silver
High Light:

foam insulation board

,

insulation foam board

Basic Infomation
Place of Origin: China
Brand Name: JISI
Certification: FDA SGS CE
Model Number: VIP003
Payment & Shipping Terms
Packaging Details: Carton packing
Delivery Time: 7 work days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 3000㎡ per day
Product Description

Ultra Thin Meidicine Vacuum Insulated Panels Thermal Insulation Panels

Product Details:

A Vacuum Insulation Panel :
Vacuum Insulation Panels (VIPs) are ultra-thin, high-performing insulants that can be up to 20 times more effective than traditional insulation products. VIPs provide energy efficiency and space benefits for home appliances, temperature-controlled packaging, refrigerated transportation systems and any other applications that require low energy loss from heat transfer.
A Vacuum Insulation Panel consists of a rigid, highly-porous core material encased in a thin, gas-tight outer envelope, which is evacuated and sealed to prevent outside gases from entering the panel. The combination of porous material and the vacuum results in an extremely high thermal resistance, which allows for thinner insulation in applications where space is at a premium.

Items
Unit
Performance
Brand
Surface Density(10mm as sample)
kg/m2
≤ 5




LS
Thermal Conductivity
W/mk
≤0.002
Tensile Strength
MPa
≥0.10
Compression Strength
MPa
≥0.12
Combustion Performance
Class
A1
Volatile Water Absorption Rate(V/V)
%
≤ 1.5




Applications;

· Commercial Refrigeration Equipment including: Beverage Coolers,Refrigerators and Freezers

· Refrigerated Vending Machines

· Residential Refrigerators and Freezers

· Mobile Refrigeration and Cold Chain Solutions such as Insulated shipping containers and temperature controlled transportation solutions

· Water Heaters

· Construction, Home Building Material

· Medical Vaccine




Ultra Thin Meidicine Vacuum Insulated Panels Thermal Insulation Panels 0Ultra Thin Meidicine Vacuum Insulated Panels Thermal Insulation Panels 1

More items:

Cooler box and cool packs;

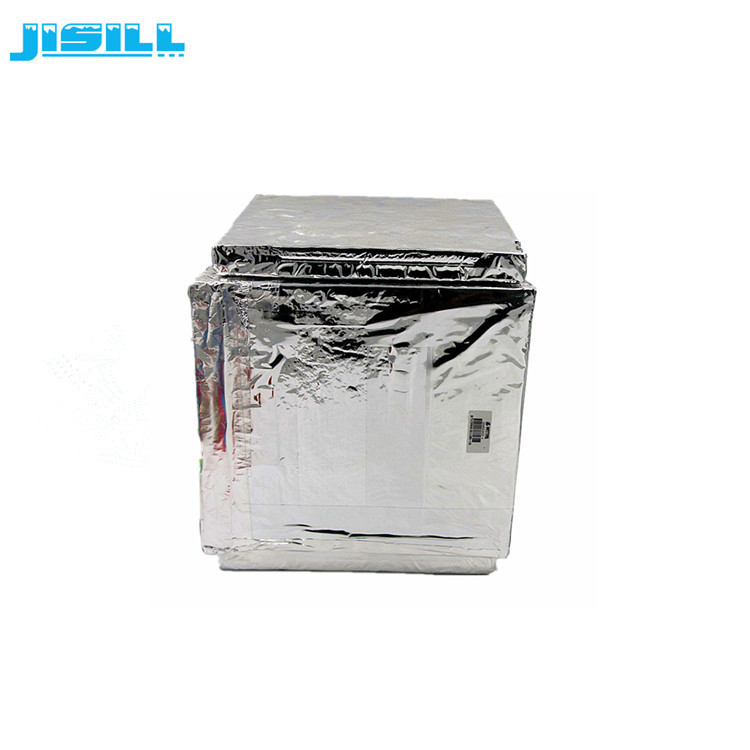

Inside the cooler box wereVIP Vacuum Insulation Panel and ice pack, they can keep your contents cold for 48h,72h,96h,100h,and 200h.VIPs provide energy efficiency and space benefits for home appliances, temperature-controlled packaging, refrigerated transportation systems and any other applications that require low energy loss from heat transfer.

A cool pack is manufactured using food grade HDPE plastic containers and after filling the containers with coolant are sealed using our Ultrasonic machine which ensures a leak free.Ultra Thin Meidicine Vacuum Insulated Panels Thermal Insulation Panels 2

Advantages:

  • we are a professional factory, manufacturers.
  • we have the blow molding machine, injection molding machine and ultrasound machine.
  • we can customize your products.
  • we have many kinds of temperature formula, for example, 2-8 degrees, 4 to 5 degrees, 10 degrees below zero, 15 degrees below zero, 25 degrees below zero, etc.
  • high productivity and fast delivery.
